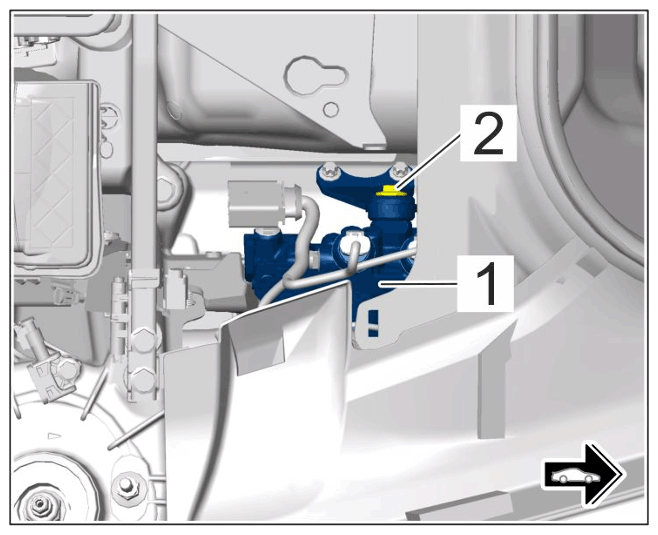

| Front valve block to valve block holder |
Hexagon roundhead bolt, M6 x 37 |
Tightening torque |
10 Nm (7.5 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Valve block mounting (front) |

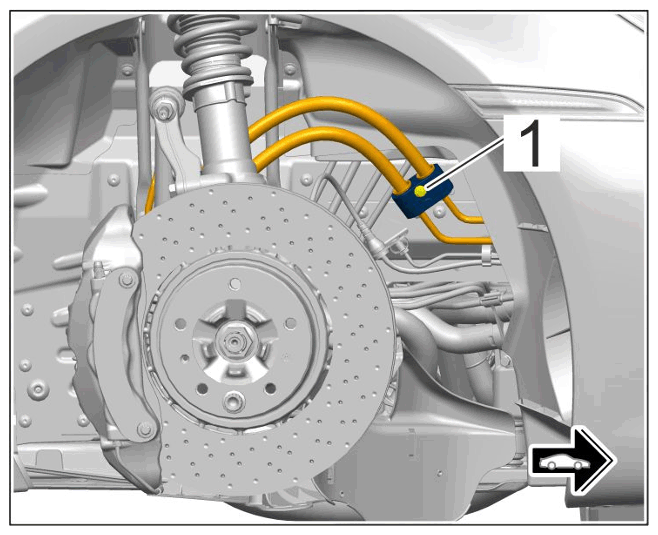

| Line holder to body |
Screw, M6 x 40 |
Tightening torque |
10 Nm (7.5 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Line holder |
