Installing Valve Block (Front)

NOTE: Incorrect line routing
  • Risk of damage to lines and hoses
  • Malfunction and fault memory entry on control unit

    → Avoid small bending radii when routing lines.

    → File down edges and burrs in the routing area or mask them with adhesive tape.

    → Maintain a sufficient distance from components exposed to high temperatures while driving.

  1. Fit valve block (front).
    G15519704Courtesy of PORSCHE CARS NORTH AMERICA, INC.

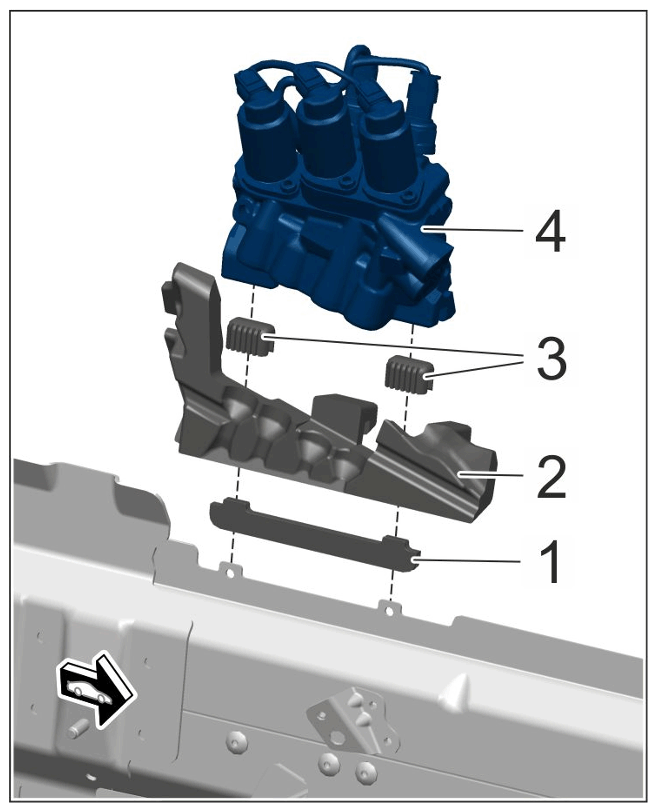

    Valve block mounting (front)

    1. 1.1 Push valve block adapter -1-  onto longitudinal member.
    2. 1.2 Push foam part -2-  onto valve block adapter -1-  .
    3. 1.3 Push valve block bearing -3-  onto valve block adapter -1-  .
    4. 1.4 Position valve block -4-  on valve block bearing -3-  .
    5. 1.5 Tighten screw -2-  . >Tightening torque 10 Nm (7.5 ftlb.)
    G15519705Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Valve block mounting (front)

  2. Connect and lock electric plug connection -1-  on the valve block (front) -2-  .
    G15519706Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection on valve block (front)

  3. Fit hydraulic lines -1-  on the valve block -2-  .
    G15519707Courtesy of PORSCHE CARS NORTH AMERICA, INC.

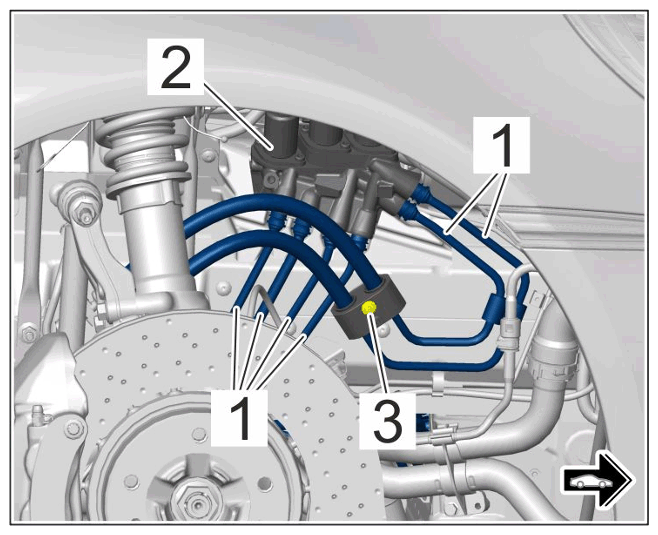

    Hydraulic lines on valve block (front)

    1. 3.1 Remove stoppers.
    2. 3.2 Assign hydraulic lines according to markings (see information on "Removing").
    3. 3.3 Insert hydraulic lines until they engage securely.
    4. 3.4 Tighten screw -3-  on the holder. >Tightening torque 10 Nm (7.5 ftlb.)
  4. Insert foam part -1-  .
G15519708Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Foam part
