Making Filling Adapter

Information

You must first make a filling adapter in order to drain and fill hydraulic fluid.

Following use, the filling adapter can be kept for future repairs.

1. Order pressure line for actuator at connection point in wheel housing (see PET). Do not use the pressure line installed in the vehicle!
2. Cut the pressure line to suit the connection for the actuator >Cutting pressure line  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

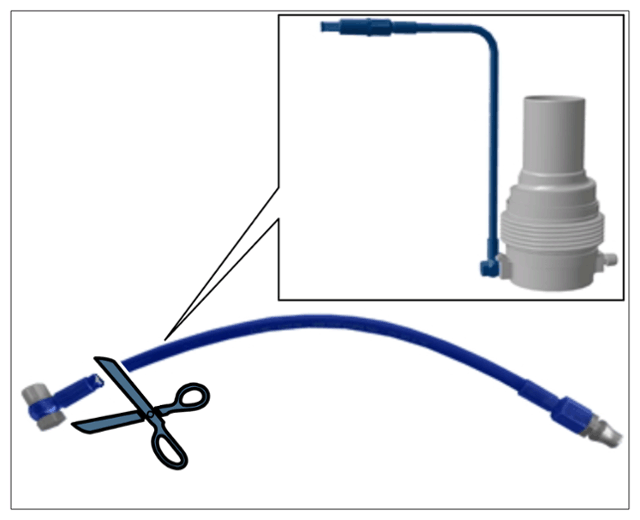

Cutting pressure line
