Removing Power-Steering Gear

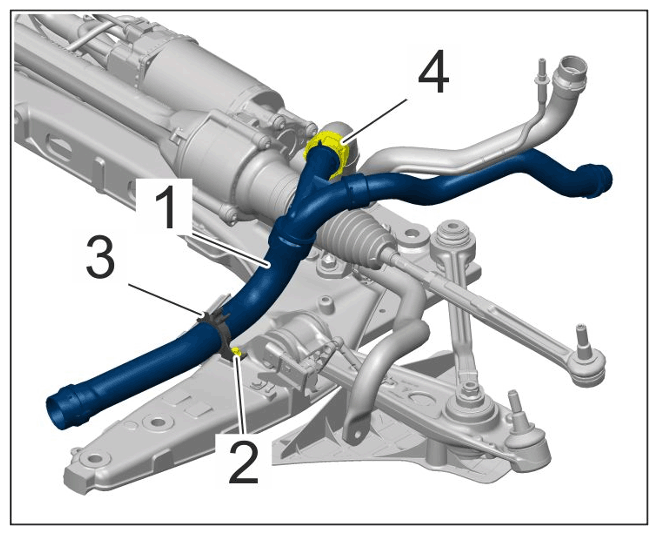

  1. Remove right coolant line -1-  .
    G15520210Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Right coolant line

    1. 1.1  Unscrew screw -2-  and remove holder -3-  .
    2. 1.2  Release quick connector -4-  and pull it off.

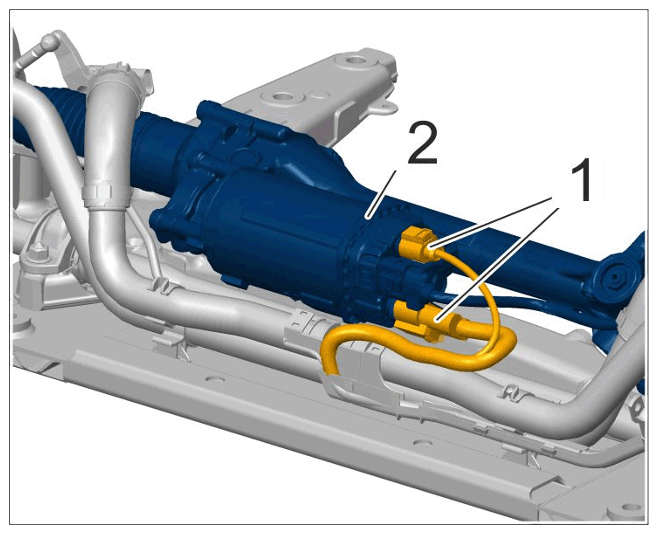

  2. Release and disconnect electric plug connections -1-  on the power-steering gear -2-  .
    G15520211Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connections on power-steering gear

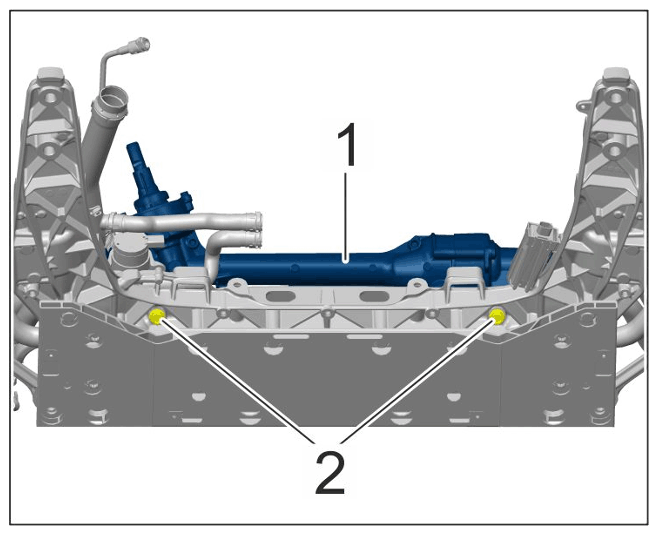

  3. Remove power-steering gear -1-  from the front-axle cross member.
    G15520212Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for power-steering gear

    1. 3.1  Unscrew and remove screws -2-  .
