Preliminary Work

Information

The front-axle cross member is removed together with the following components:

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

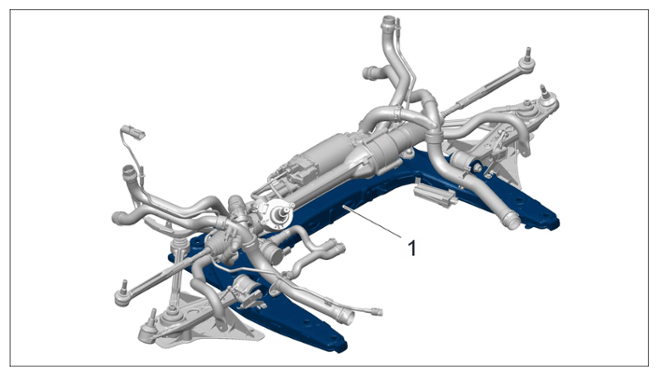

Front-axle cross member

• Power-steering gear including wire harness
• Anti-roll bar
• trailing arm
• Additional coolant pump (only for all-wheel drive vehicles)
• Sections of the coolant lines and vent lines
• RDK control unit
• Angle sensor for headlight beam adjustment

1. Remove front-axle cross member.

   400919 REMOVING AND INSTALLING FRONT-AXLE CROSS MEMBER - information on "Removing"
