Make sure that the rack-and-pinion of the power-steering gear is not damaged (score marks) during assembly.
Fit tie rod on the power-steering gear.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tie rod on rack-and-pinion
1.1
Turn tie rod on rack-and-pinion of the power-steering gear.
1.2

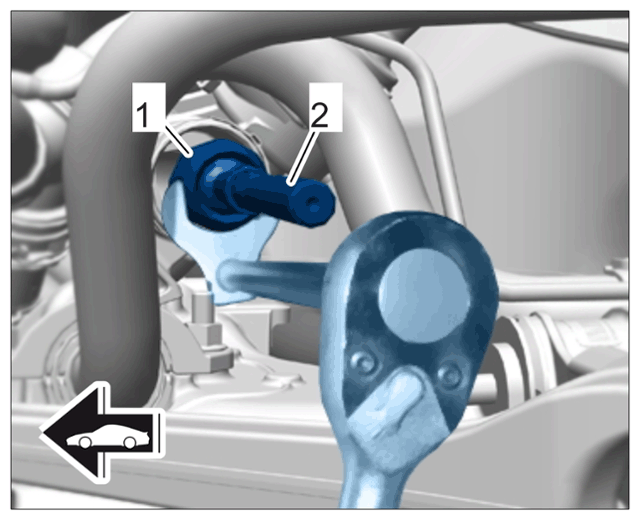

Secure tie rod -2-
at the octagon using > V.A.G 1923 - Open end spanner insert, a/f 38-1-
. > Tightening torque 105 Nm (77.4 ftlb.) +/- 5 Nm (3.7 ftlb.)
