Removing Steering Column Lower Part

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bottom universal joint for steering column

1. 1.1  Unscrew screw -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

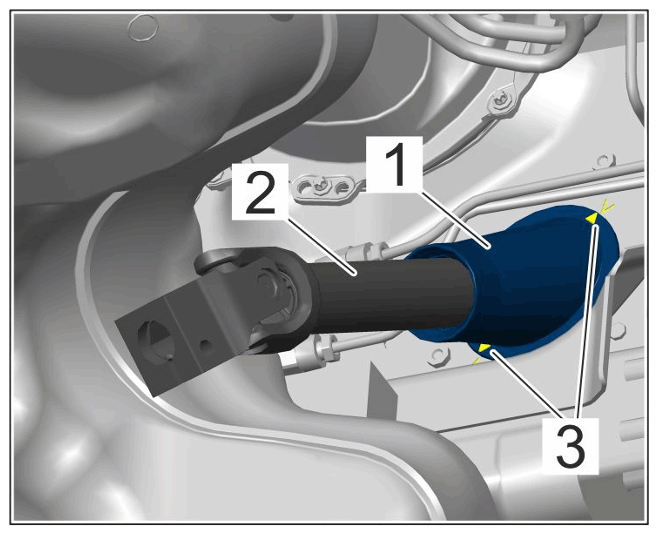

Steering column lower part and sealing sleeve

1. 2.1  Detach sealing sleeve -1-  from the firewall.
2. 2.2  Guide steering column lower part -2-  down and out.
