Removing Steering Column

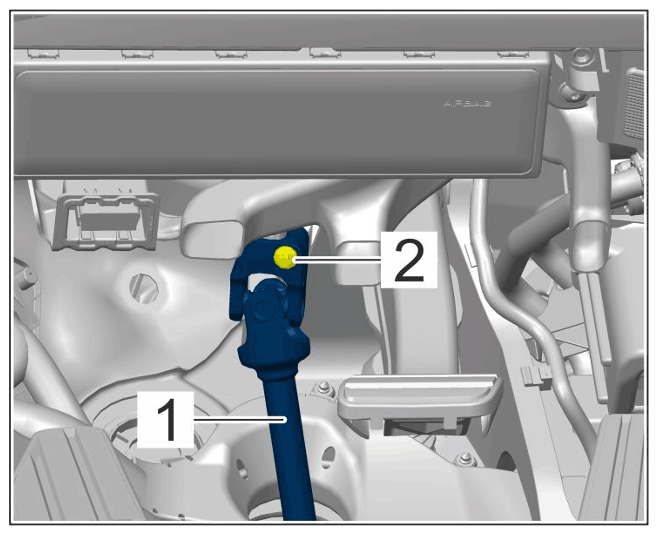

  1. Remove bottom joint -1-  from steering column.
    G15520163Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Bottom joint on steering column

    1. 1.1  Unscrew screw -2-  .

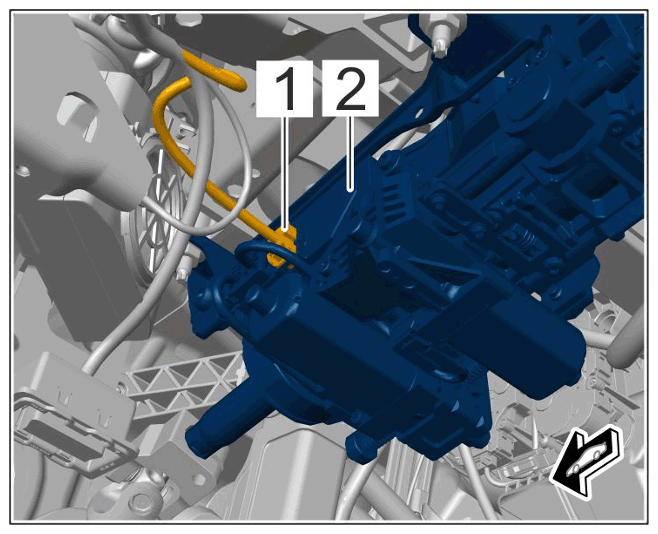

  2. Release electric plug connection -1-  at the left of the steering column -2-  and disconnect it.
    G15520164Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection, left

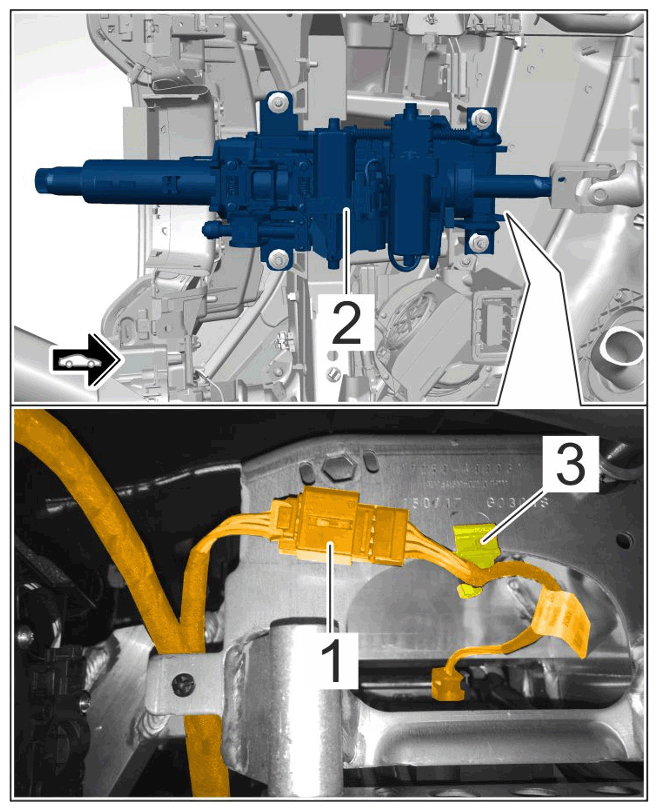

  3. Release electric plug connection -1-  at the top of the steering column -2-  and disconnect it.
    G15520165Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection, top

    1. 3.1  Loosen bracket -3-  .

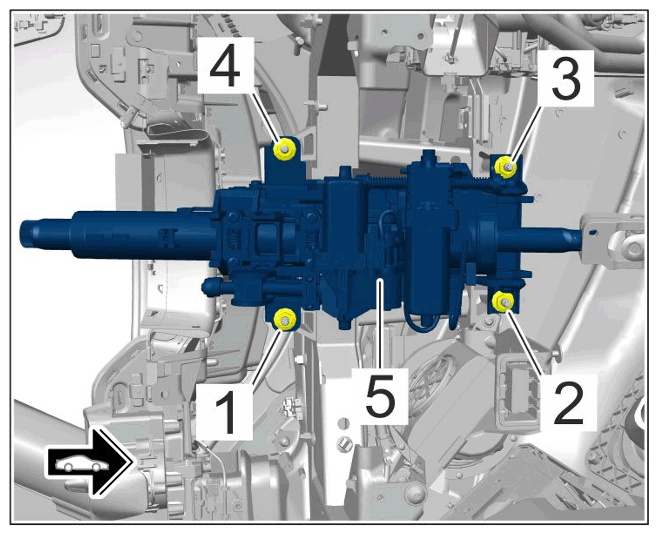

  4. Remove steering column -5-  from the dashboard bracket.
    Fig 1: Steering Column Mounting Nuts Loosening Sequence
    G15520166Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Steering column mounting

    1. 4.1  Unscrew nuts -1 to 4-  .
    2. 4.2  Carefully guide the steering column out of the footwell.
