Removing Casing (Lower Part)

Move steering wheel to the lower, rear position.
Detach casing (upper part) -1- from casing (lower part).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

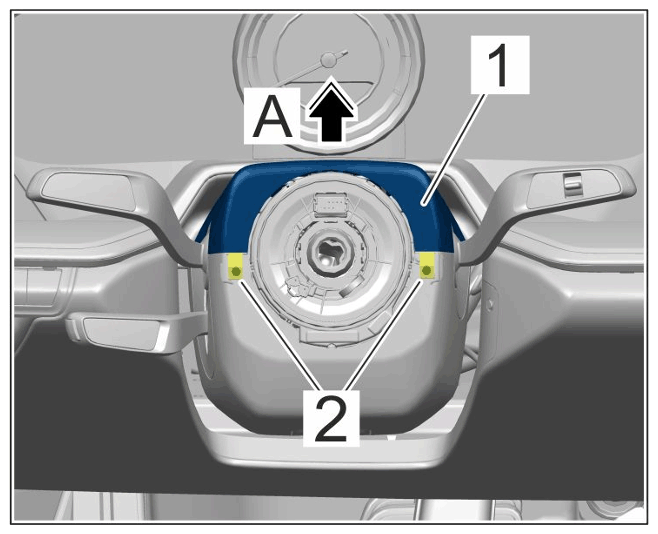

Mounting for casing (upper part/lower part)
1. 2.1 Turn the steering wheel so that the openings on the front of the casing (upper part) are accessible.
2. 2.2 Unclip casing (upper part) -2- and lift it up -arrow A- .
Remove casing (lower part) -1- from the steering-column switch.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

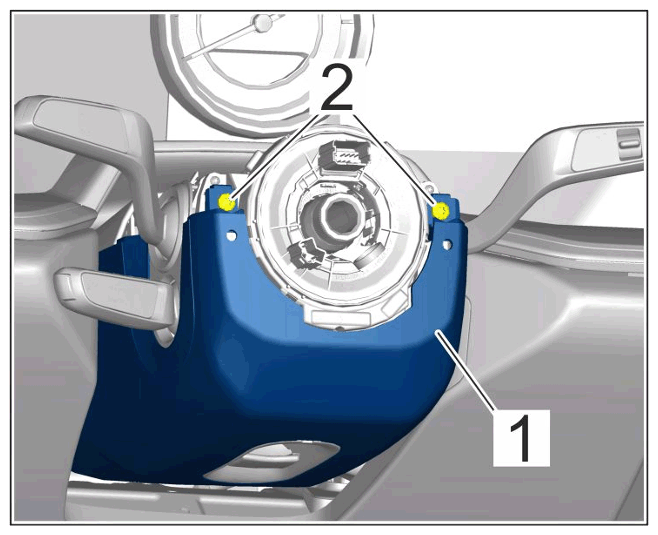

Mounting for casing (lower part)
1. 3.1 Unscrew and remove screws -2- .
Remove casing (lower part) -1- from steering column.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

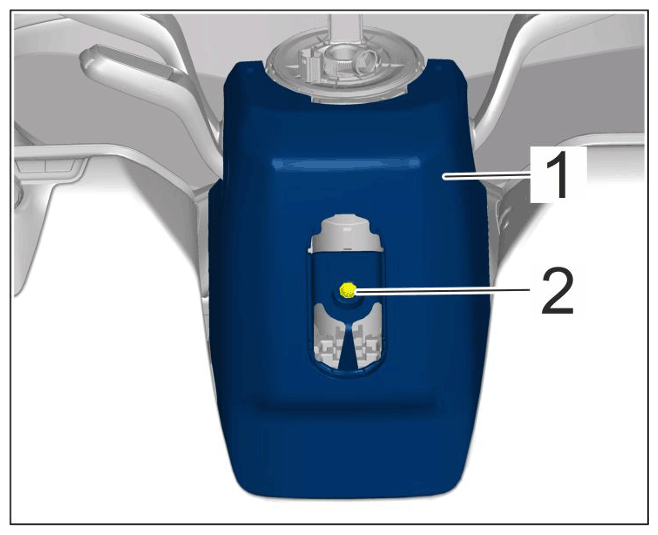

Mounting for casing (lower part)
1. 4.1 Unscrew screw -2- .
