Installing Casing (Lower Part)

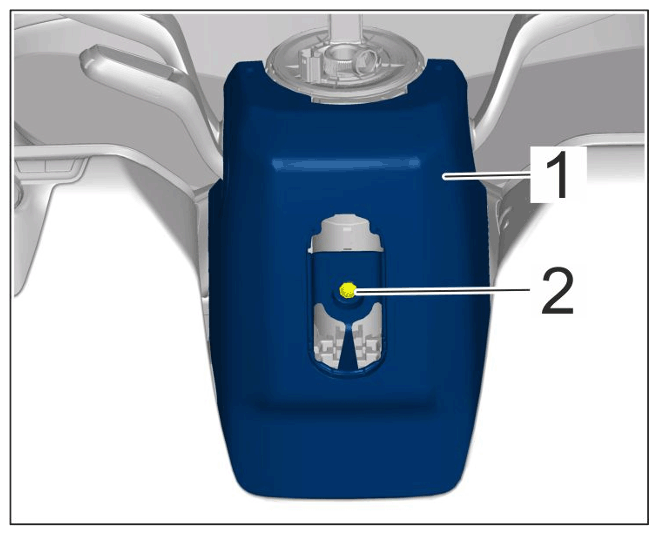

Fit casing (lower part) -1- on the steering column.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for casing (lower part)
1. 1.1 Tighten screw -2- . > Tightening torque 1.5 Nm (1.1 ftlb.)

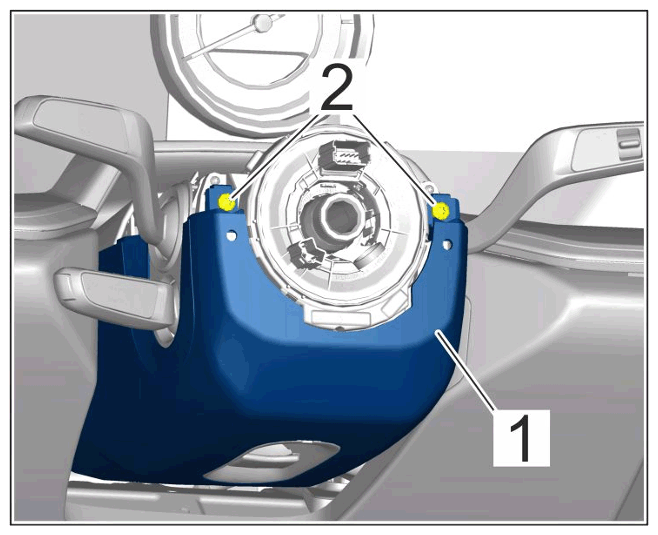

Fit trim panel (lower part) -1- on the steering-column switch.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for casing (lower part)
1. 2.1 Tighten screws -2- . > Tightening torque 2 Nm (1.5 ftlb.)

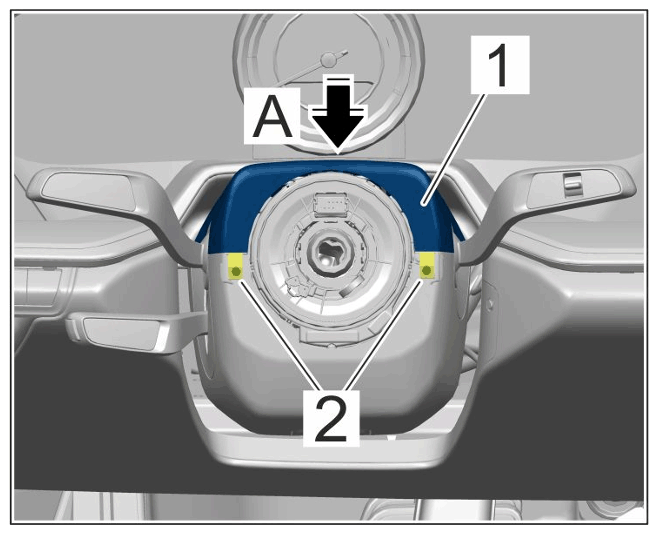

Secure casing (upper part) -1- to casing (lower part).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for casing (upper part/lower part)
1. 3.1 Insert casing (upper part) in casing (lower part) -arrow A- so that the clips -2- engage securely.
