Removing Trim Panel (Upper Part)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for casing (upper part/lower part)

1. 2.1  Turn the steering wheel so that the openings on the front of the casing (upper part) are accessible.
2. 2.2  Unclip casing (upper part) -2-  and lift it up -arrow A-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

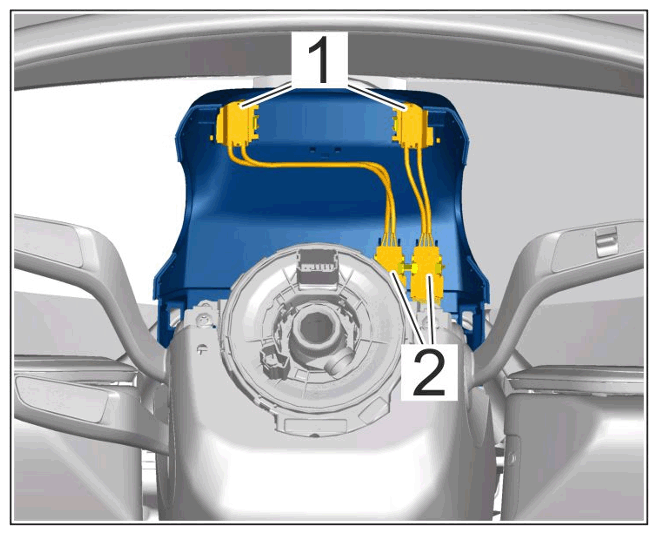

Wire harness for microphone for telephone

1. 3.1  Unclip microphone for telephone -1-  .
2. 3.2  Unclip electric plug connection -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

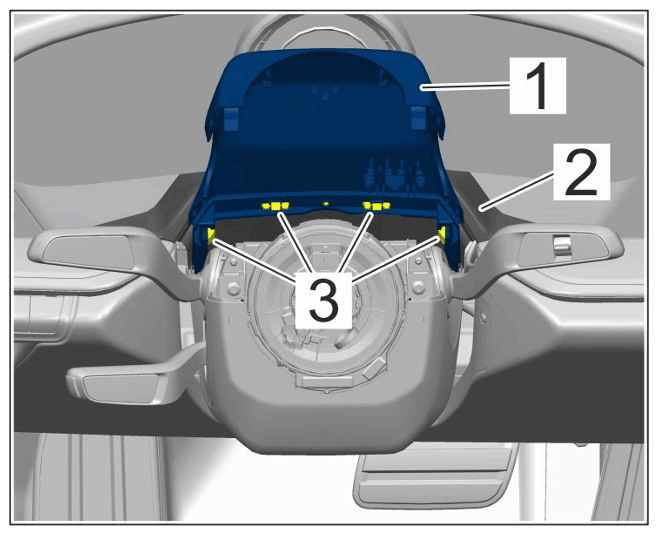

Mounting for casing (upper part) on dashboard inset

1. 4.1  Loosen clip connections -3-  .
