Installing Casing (Upper Part)

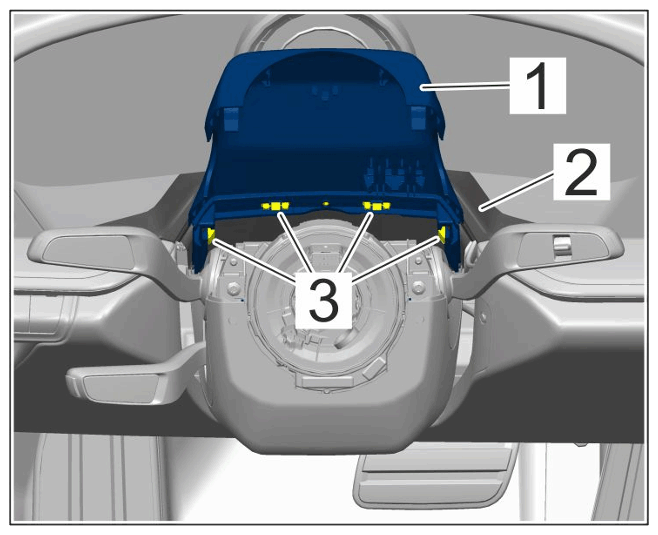

Secure casing (upper part) -1- on the dashboard inset -2- so that the clip connections -3- engage fully.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for casing (upper part) on dashboard inset

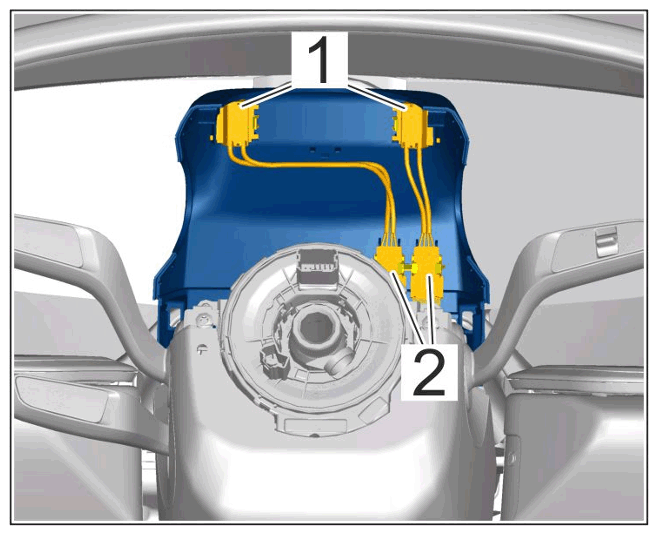

Secure wire harness for microphone for telephone to the casing (upper part).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wire harness for microphone for telephone
1. 2.1 Clip in electric plug connection -2- .
2. 2.2 Clip in microphone for telephone -1- .

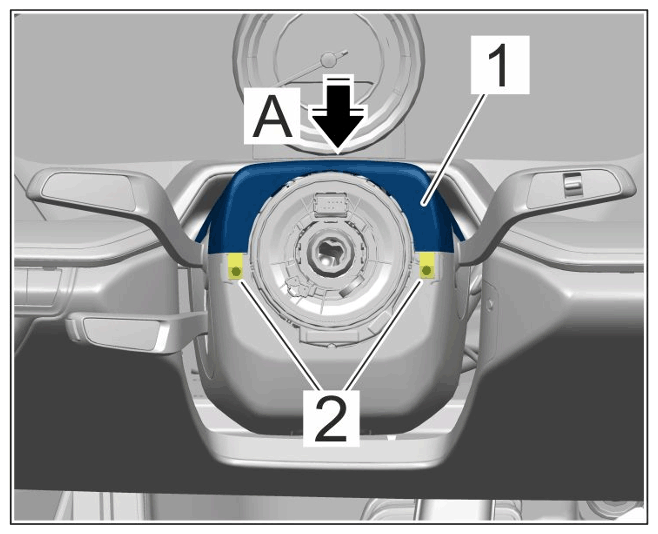

Secure casing (upper part) -1- to casing (lower part).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for casing (upper part/lower part)
1. 3.1 Insert casing (upper part) in casing (lower part) -arrow A- so that the clips -2- engage securely.
