Technical Values

Location	Description	Type	Basic value
Gearshift paddle on steering wheel skeleton		Tightening torque	3.5 Nm (2.6 ftlb.) (2.6 ftlb.)

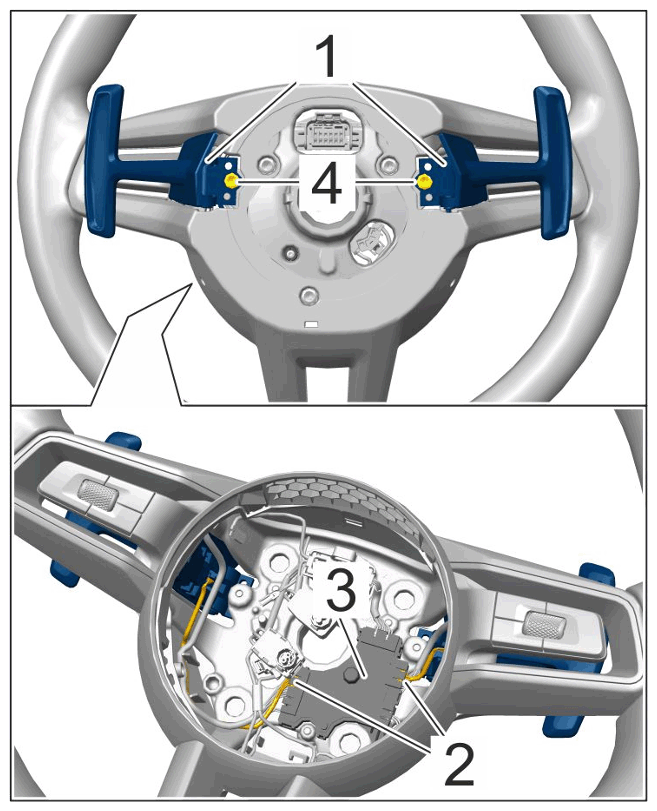

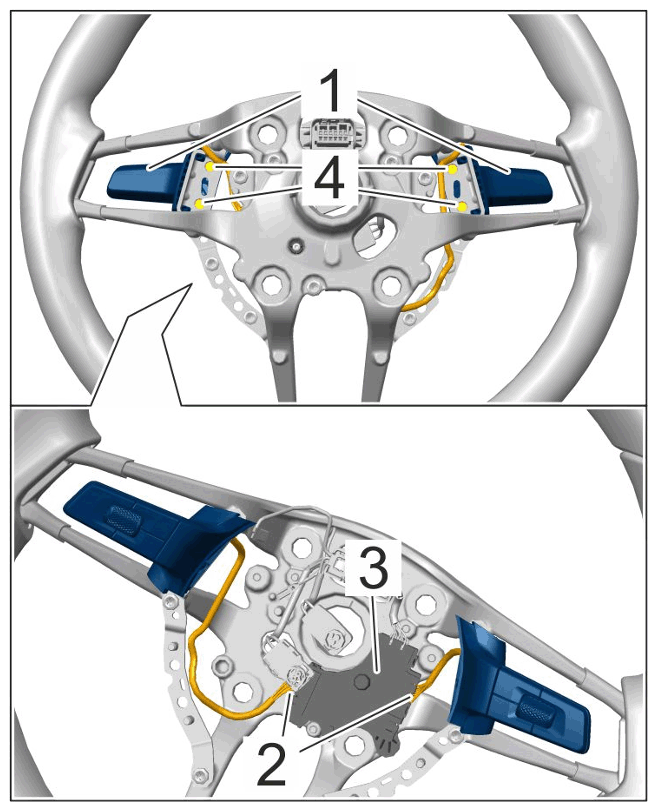

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gearshift paddles
Rear cover of steering wheel skeleton		Tightening torque	2.8 (2. ftlb.) Nm (2.1 ftlb.)

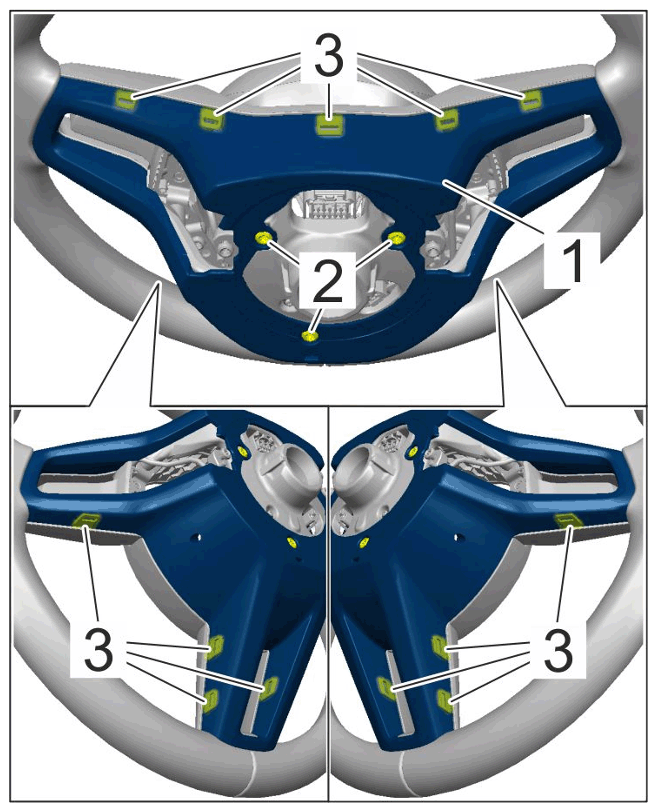

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear cover

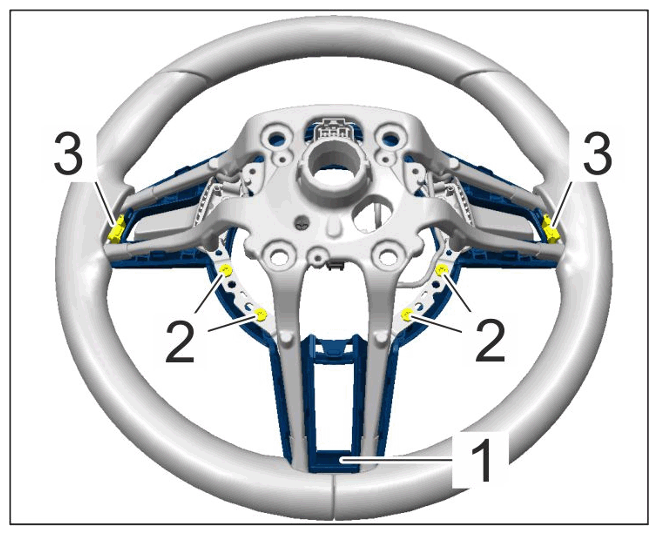

Front panel to holder		Tightening torque	1.5 Nm (0.74 ftlb.) (1.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front panel

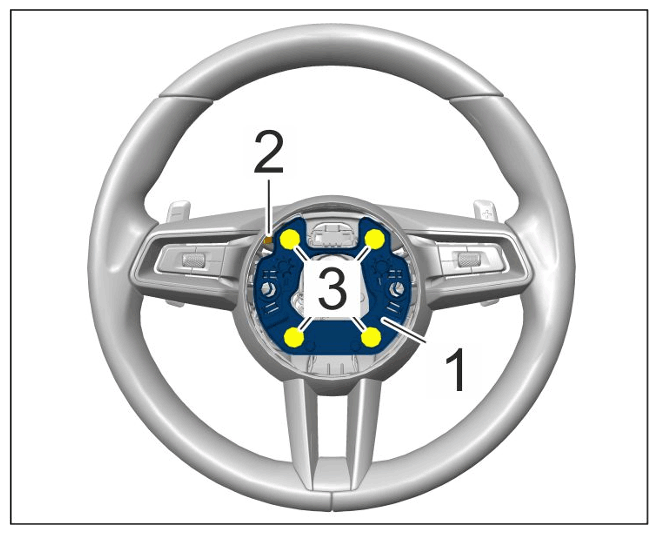

Horn plate on steering wheel skeleton		Tightening torque	3.5 Nm (2.6 ftlb.) (2.6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Horn plate
Multi-function switch on holder	Always replace screws following removal	Tightening torque	1.5 Nm (1.1 ftlb.) (1.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Multi-function switch
