Disassembling Steering Wheel

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

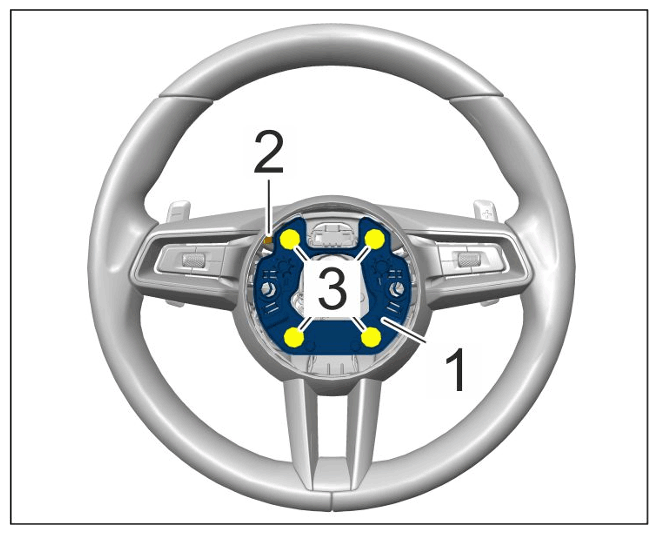

Horn plate

1. 1.1  Disconnect electric connector -2-  from connector lug.
2. 1.2  Unscrew and remove screws -3-  .
3. 1.3  Carefully remove horn plate together with the springs underneath it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

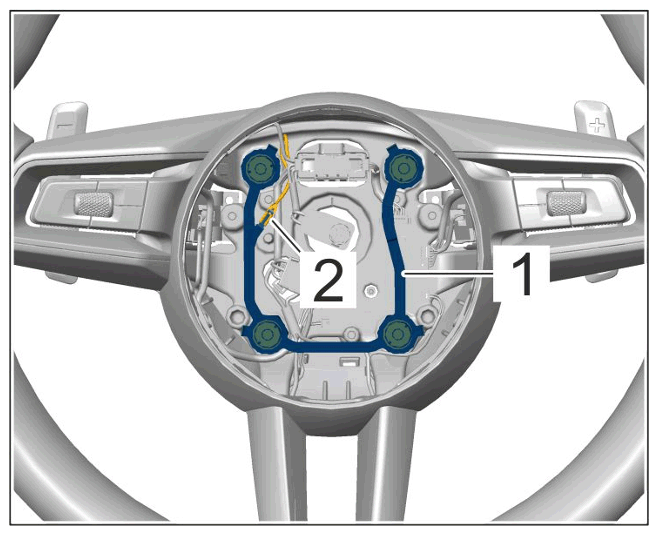

Panel

1. 2.1  Disconnect electric connector -2-  from connector lug.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

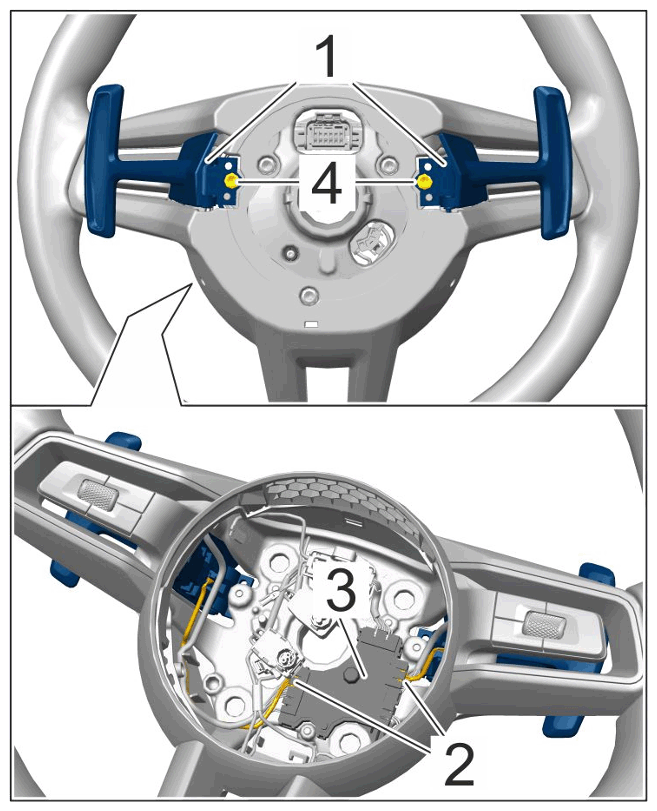

Gearshift paddles

1. 3.1  Release and disconnect electric plug connections -2-  on the control unit -3-  .
2. 3.2  Unscrew and remove screws -4-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

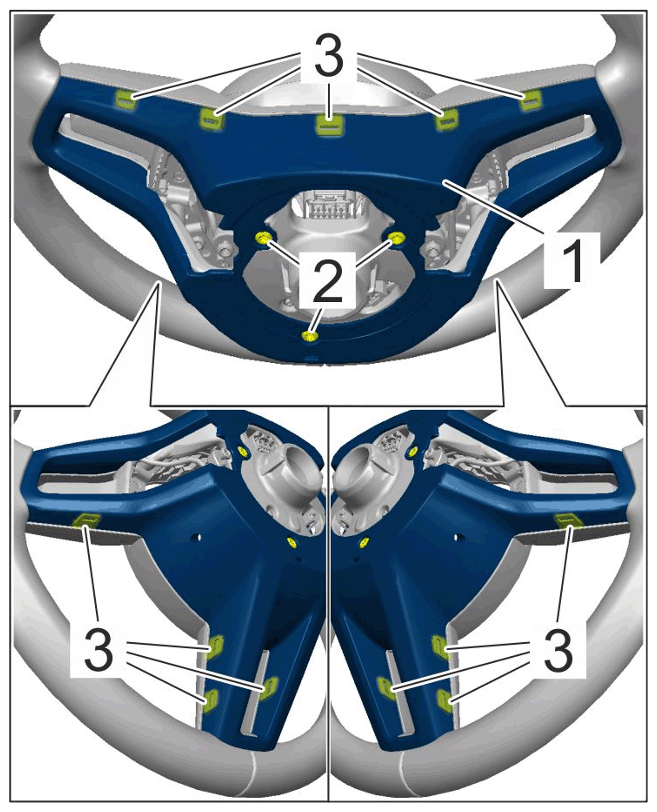

Rear cover

1. 4.1  Unscrew and remove screws -2-  .
2. 4.2  Loosen clip connections -3-  .
3. 4.3 Only for vehicles with heated steering wheel:  Lift rear cover slightly, disconnect connector on steering wheel heating switch -1-  (-arrow A-  ) and loosen the relevant wire harness from the rear cover.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

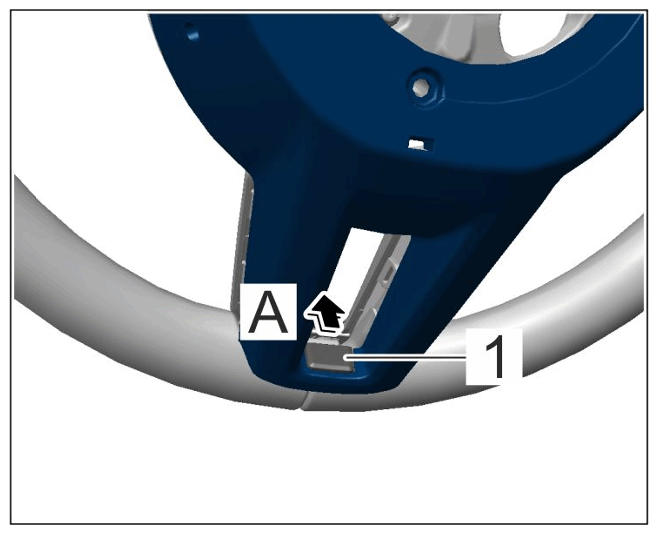

Heated steering wheel switch

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front cover

1. 5.1  Unscrew and remove screws -2-  .
2. 5.2  Unclip front cover -3-  and remove it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

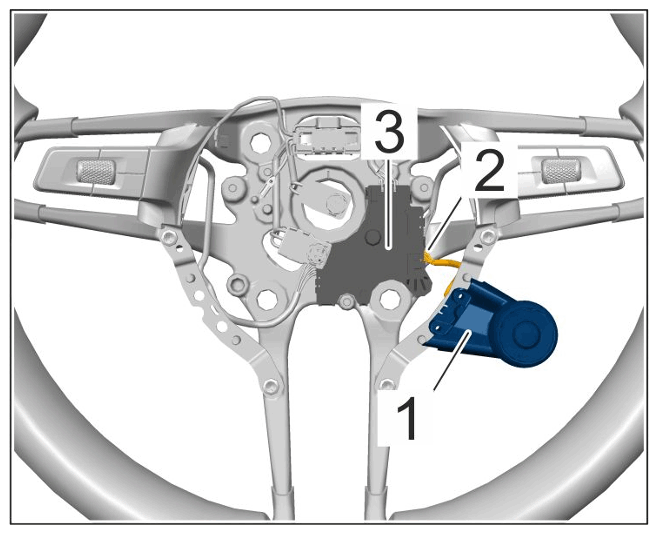

Mode switch

1. 6.1  Release and disconnect electric plug connection -2-  on the control unit -3-  .
2. 6.2  Unclip Mode switch at the holder.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

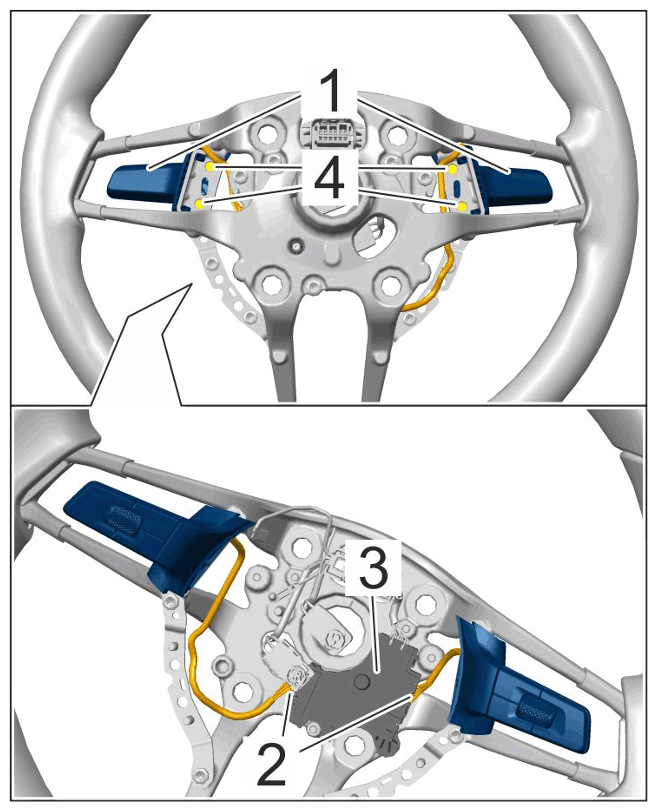

Multi-functional switch

1. 7.1  Release and disconnect electric plug connection -2-  on the control unit -3-  .
2. 7.2  Unscrew and remove screws -4-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

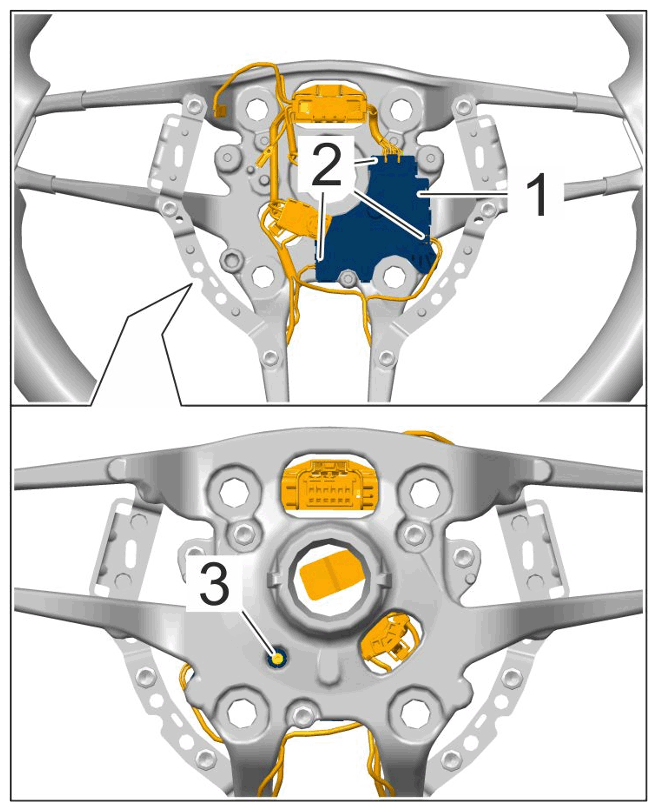

Control unit

1. 8.1  Release and unplug electric plug connections -2-  .
2. 8.2  Unscrew screw -3-  and unclip control unit.
