Assembling Steering Wheel

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

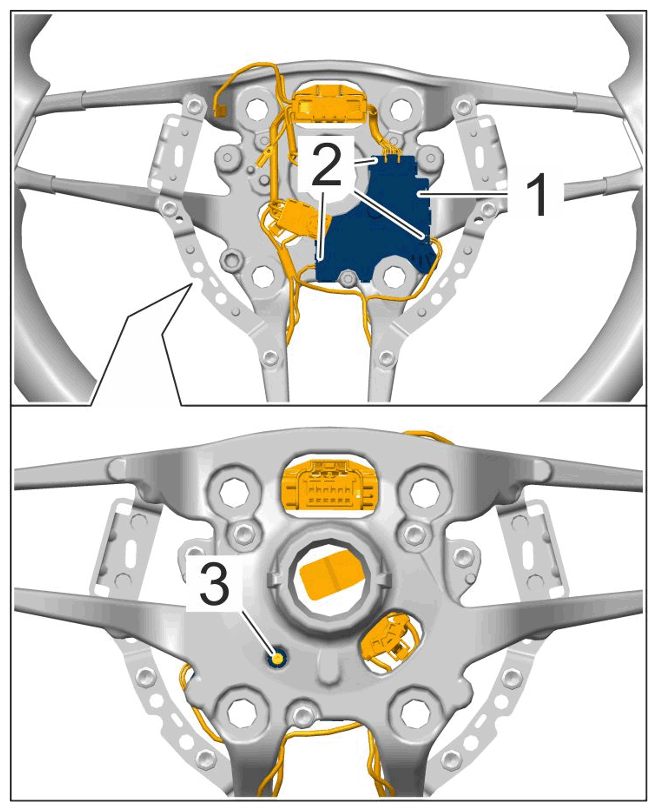

Control unit

1. 1.1  Connect and lock electric plug connections -2-  .
2. 1.2  Clip in control unit and tighten screw -3-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

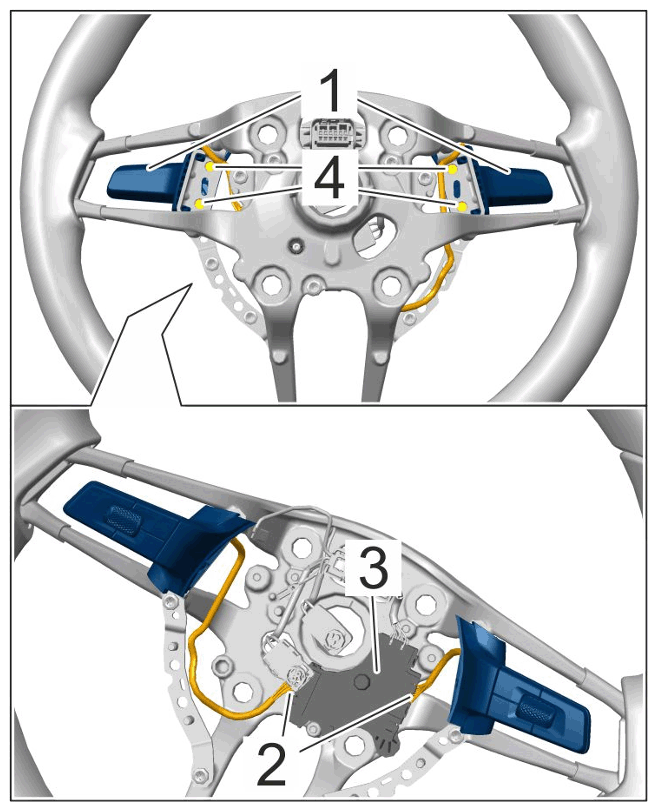

Multi-functional switch

1. 2.1  Tighten screws -4-  . > Tightening torque 1.5 Nm (1.1 ftlb.) (1.1 ftlb.)
2. 2.2  Connect electric plug connection -2-  to the control unit -3-  and lock it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

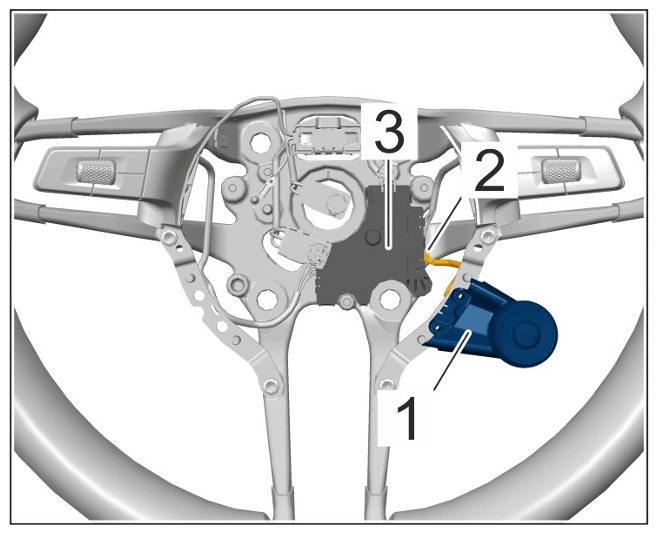

Mode switch

1. 3.1  Clip in Mode switch on the holder.
2. 3.2  Connect electric plug connection -2-  to the control unit -3-  and lock it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

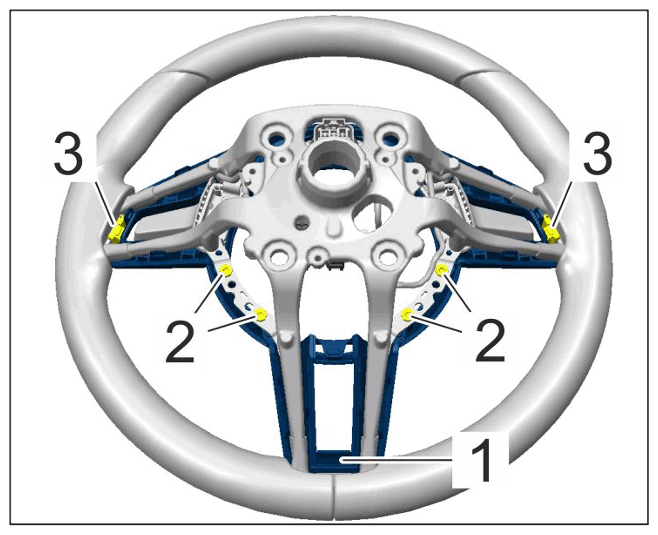

Front cover

1. 4.1  Clip in front cover -3-  .
2. 4.2  Tighten screws -2-  . > Tightening torque 1.5 Nm (0.74 ftlb.) (1.1 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

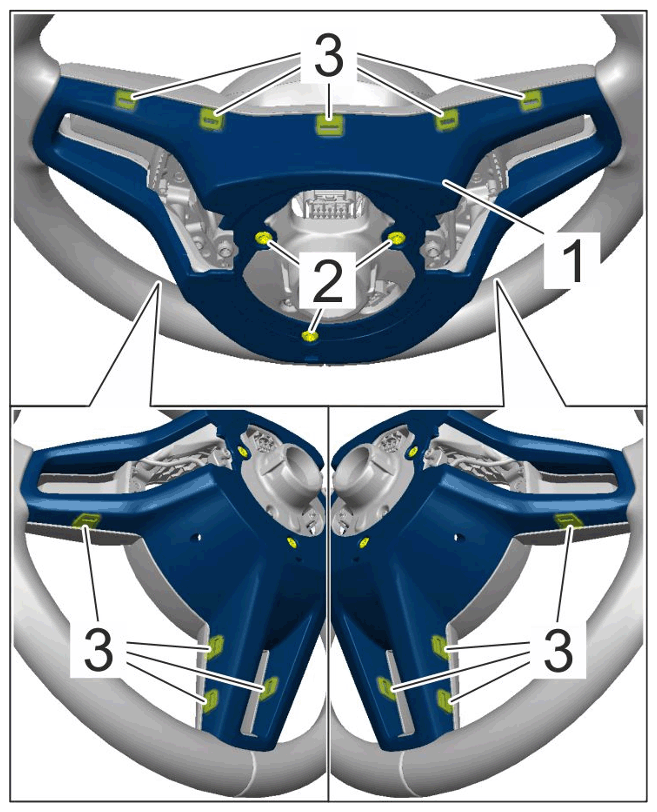

Rear cover

1. 5.1 Only for vehicles with heated steering wheel:  Insert steering wheel heating switch and route the relevant wire harness in the rear cover.
2. 5.2  Secure clip connections -3-  .
3. 5.3  Tighten screws -2-  . > Tightening torque 2.8 Nm (2.1 ftlb.) (2.1 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

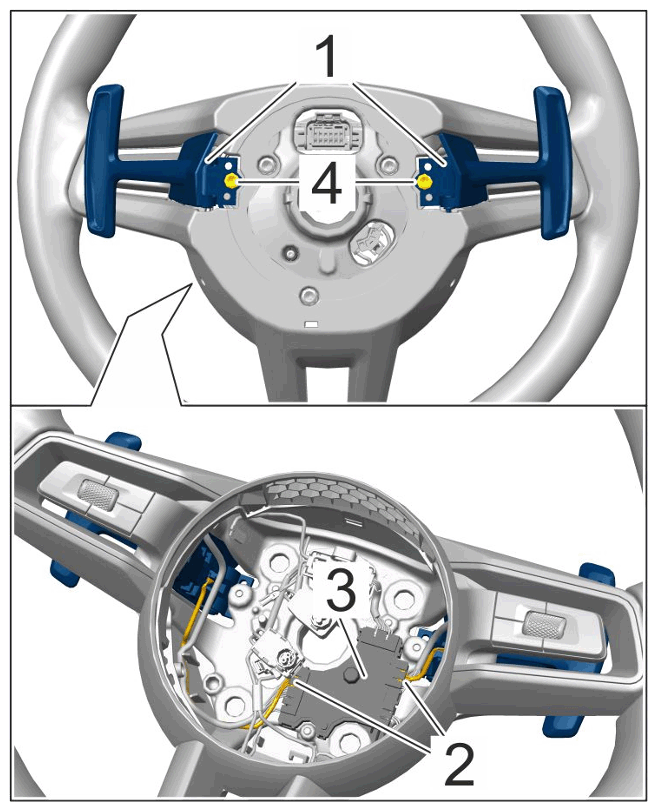

Gearshift paddles

1. 6.1  Tighten screws -4-  . > Tightening torque 3.5 Nm (2.6 ftlb.) (2.6 ftlb.)
2. 6.2  Connect electric plug connections -2-  to the control unit -3-  and lock them.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

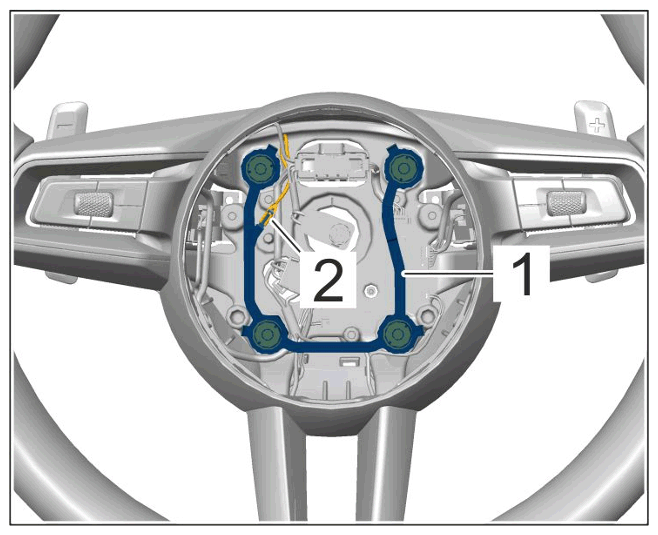

Panel

1. 7.1  Connect electric connector -2-  to the connector lug.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

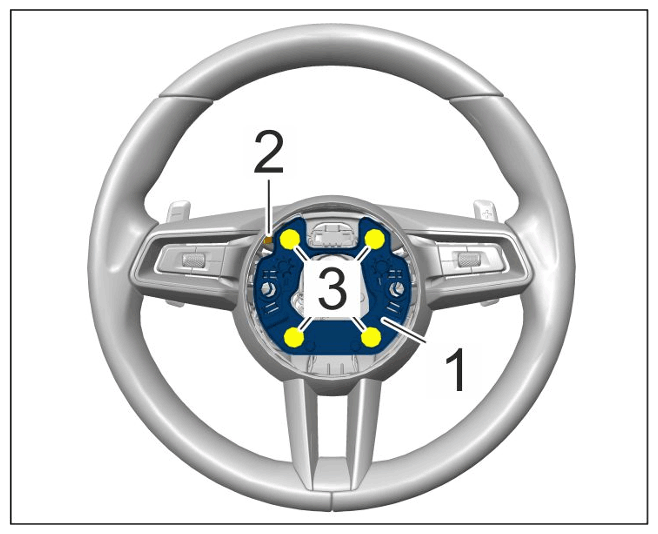

Horn plate

1. 8.1  Fit horn plate together with the springs and check that the springs are seated correctly.
2. 8.2  Tighten screws -3-  . > Tightening torque 3.5 Nm (2.6 ftlb.) (2.6 ftlb.)
3. 8.3  Connect electric connector -2-  to the connector lug.
