Removing Steering Wheel

  1. Release and disconnect electric plug connection for airbag -1-  .

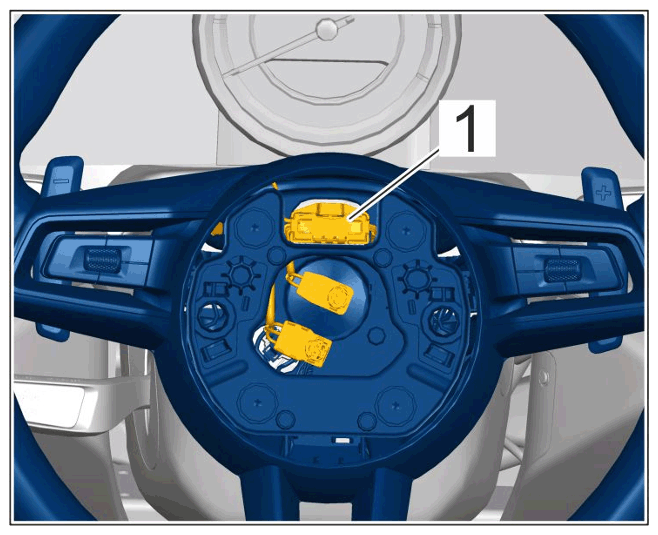

    G15520119Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Wire harness for airbag

  2. Remove steering wheel.

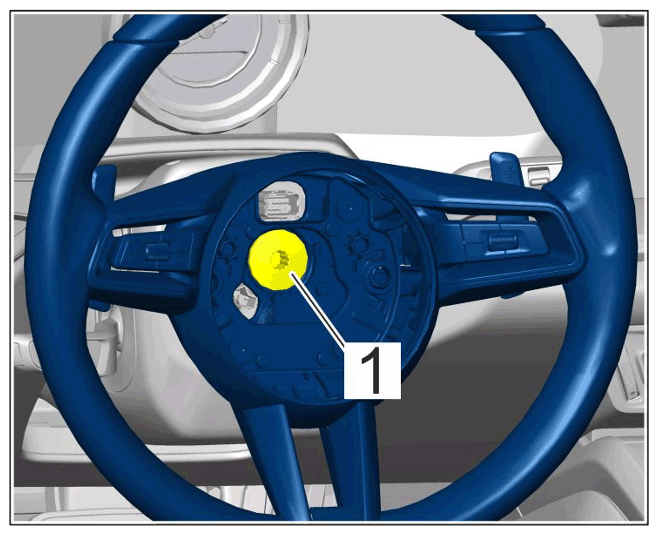

    G15520120Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for steering wheel

    1. 2.1  Unscrew screw -1-  .
  3. For vehicles with heated steering wheel:  Pull steering wheel slightly off the steering column and release and disconnect electric plug connection for heated steering wheel -1-  .

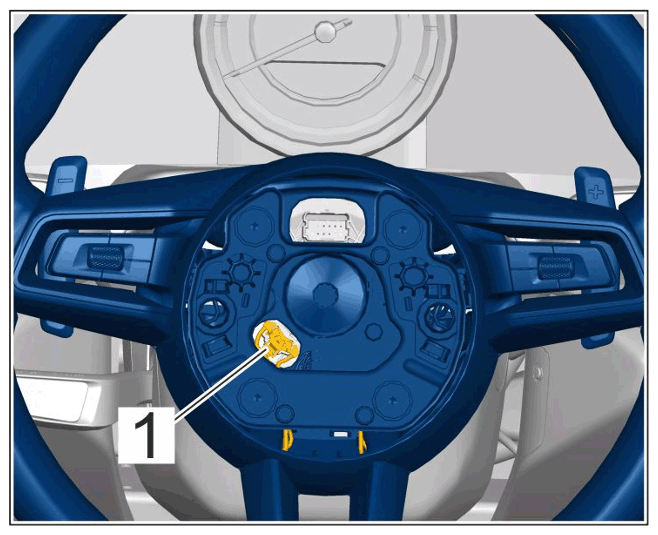

    G15520121Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Wire harness for heated steering wheel
