Installing Steering Wheel

Align steering wheel according to the marking engraved in the steering wheel and steering column. > 12 o'clock marking on steering wheel/steering column

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

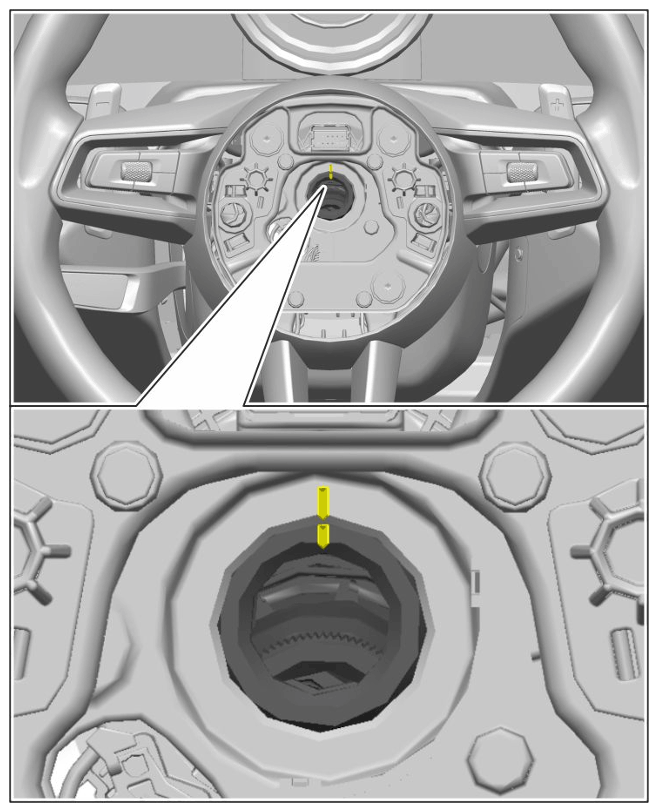

12 o'clock marking on steering wheel/steering column
For vehicles with heated - teeing wheel: Push on and lock electric plug connection for heated steering wheel -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

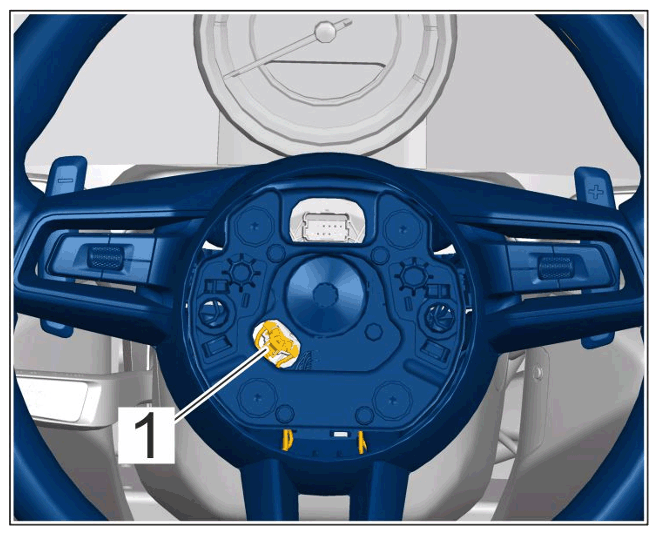

Wire harness for heated steering wheel
Fit steering wheel.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

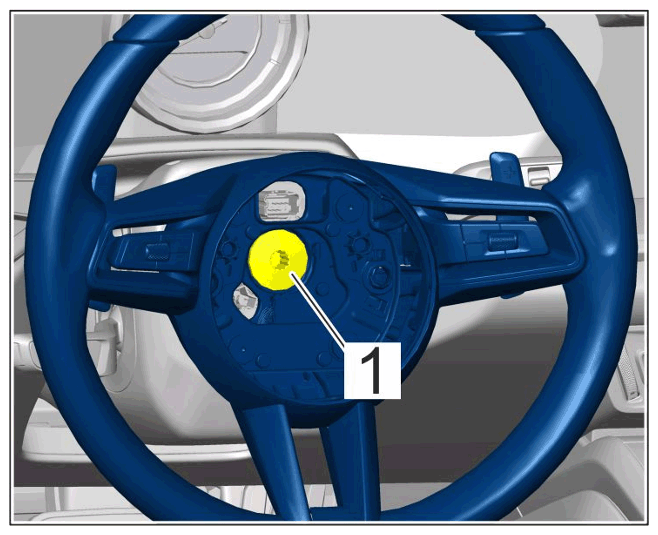

Mounting for steering wheel
1. 3.1 Tighten screw -1- . > Initial tightening 30 Nm (22.1 ftlb.) > Final tightening + 90°
Push on and lock electric plug connection for airbag -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

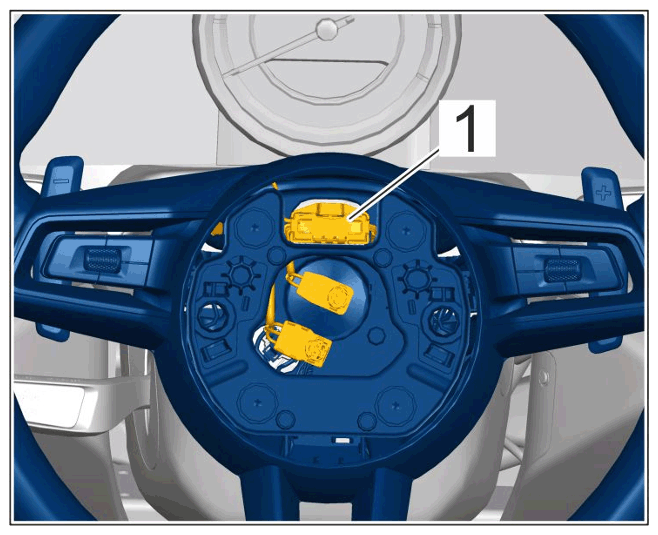

Wire harness for airbag
