Removing Steering Column Lock

Information

Always comply with the regulations for handling ESD-sensitive components!

• Always wear approved work clothes and shoes when carrying out assembly work.
• Do not remove new part from ESD (electrostatic discharge) protective packaging until shortly before installation and only at the installation position.
• Do not touch electric pins and plug contacts.

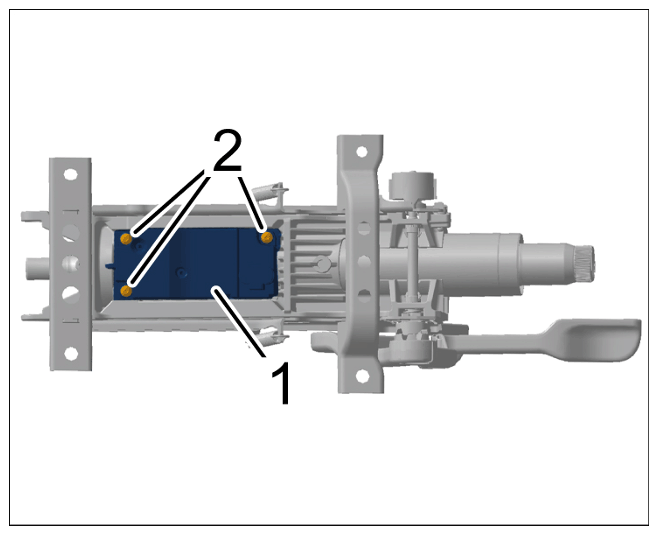

1. Unscrew fastening screws -2-  .
2. Remove steering column lock -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fastening screws
