Loosening Power Distributor

1. Release and disconnect electric plug connection for disconnection element -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

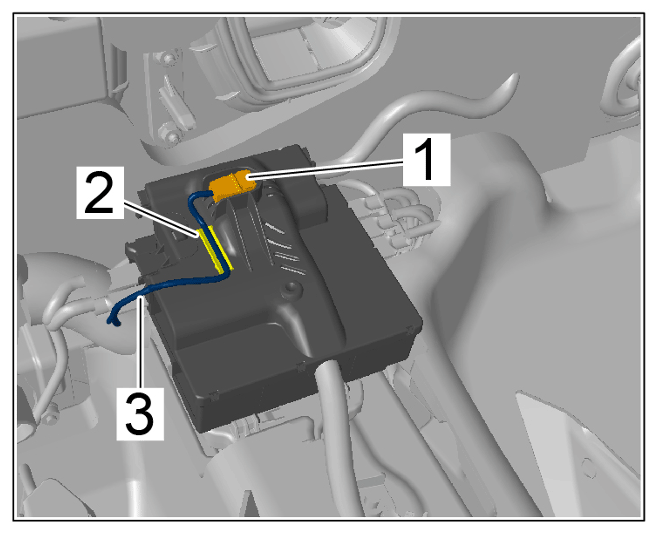

   Electric plug connection for disconnection element

2. Unclip line bracket -2-  and remove section of line for disconnection element -3-  from power distributor.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Section of line for disconnection element

3. Unclip retaining lugs -1-  from cover on power distributor -2-  and remove cover on power distributor -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

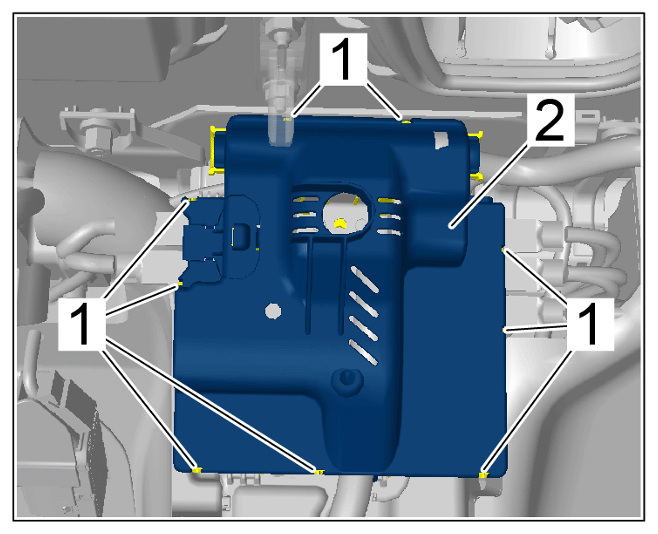

   Cover on power distributor

4. Open locking mechanisms -1-  and pull relay carrier -2-  out of the power distributor -3-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

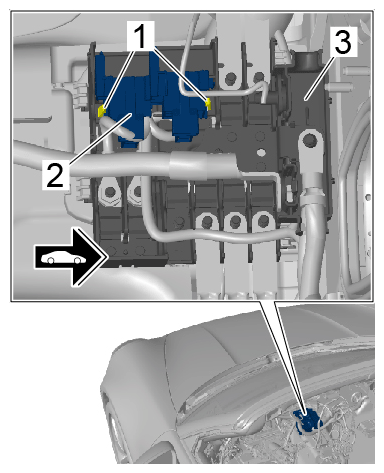

Relay carrier
