Loosening Fuse Box In Front Right FOOTWELL

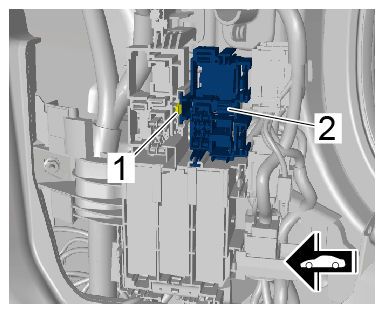

1. Open locking mechanisms -1-  and pull connector holder out of the relay carrier -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Connector holder

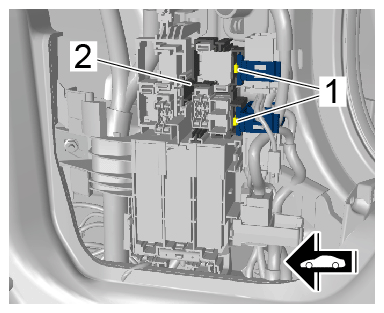

2. Open locking mechanism -1-  and pull relay carrier -2-  out of the fuse box.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fuse box
