Installation Position

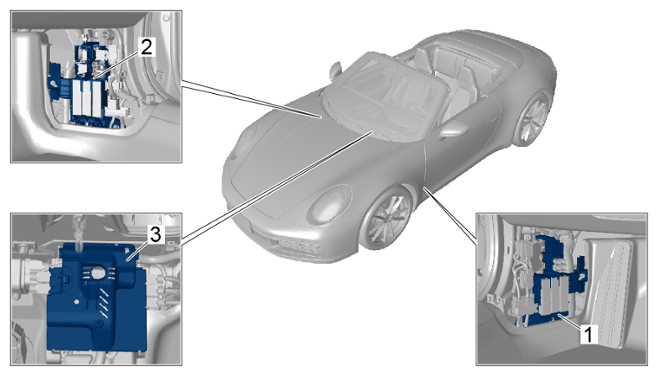

Fig 1: Relay Carrier Components Location
G15535835Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position

1  Fuse box in front left footwell
2  Fuse box in front right footwell
3  Power distributor
