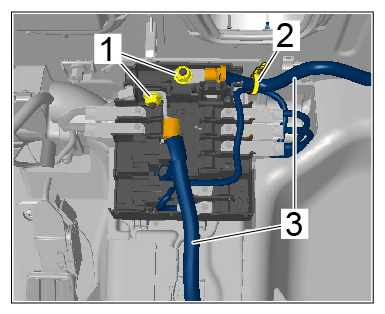

| Fastening nut securing positive cable to power distributor |
Item 1 |
Tightening torque |
18 Nm |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Positive cable |
| Fastening nut securing electric lines to power distributor |
Item 5 |
Tightening torque |
9 Nm |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fastening nuts |
