Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Fastening nut securing battery ground strap to body Item 2 Tightening torque 15 Nm (11 ftlb.)

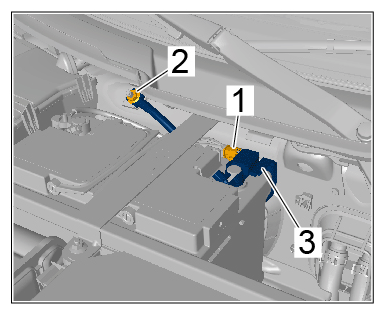

G15535812Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Battery ground strap
Terminal clamp to battery terminal M6 nut Tightening torque 6 Nm (4.5 ftlb.)
