Removing Ground Strap For Battery

Information

Switch off all electrical loads and keep transmitter key outside of the transmission range (at least 2 m).

• Do not disconnect the battery while the engine is running.
• Be very careful when disconnecting and connecting the battery.

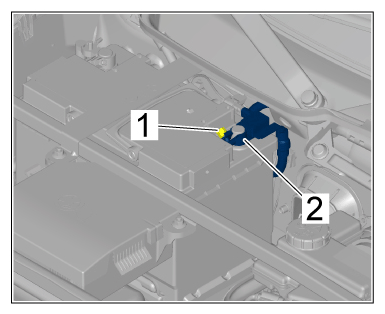

1. Loosen fastening nut -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fastening nut

2. Disconnect ground strap for battery -2-  from the ground terminal of the battery/vehicle electrical system.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Ground strap for battery

3. Only for vehicles without 12 V lithium-ion battery:

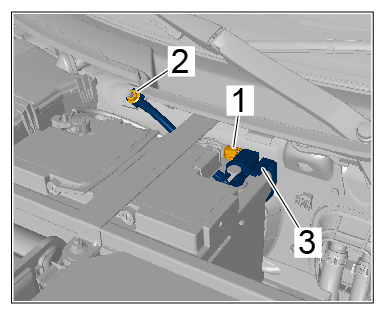

   Release and unplug electric plug connection -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

4. Unscrew fastening nut -2-  and remove ground strap for battery -3-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Ground strap for battery
