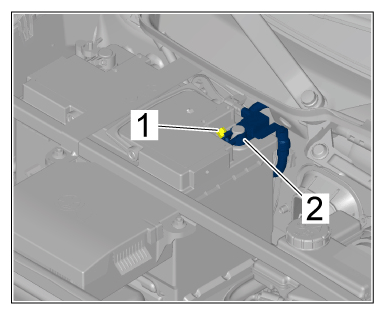

Securing Ground Strap For Battery

1. Connect ground strap for battery -2-  to the ground terminal of the battery/vehicle electrical system.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Ground strap for battery

2. Tighten fastening nut -1-  to > Tightening torque 6 Nm (4.5 ftlb.)  until secure.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening nut
