Loosening Fuse Box In Front Left FOOTWELL

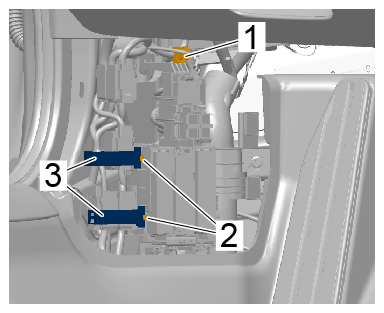

1. Unclip line bracket -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Line bracket

2. Open locking mechanisms -2-  and pull line bracket -3-  off the fuse box in the front left footwell.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Locks

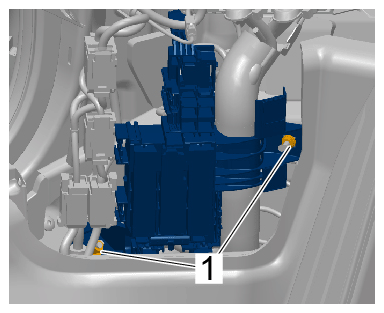

3. Screw off fastening nuts -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fastening nuts

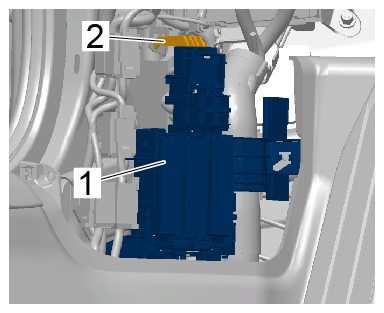

4. Press fuse box in front left footwell -1-  upwards until the retaining lug at the top -2-  is released and swivel out the fuse box in the front left footwell -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fuse box in front left footwell
