Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Fastening screw securing strut to body Item 1 Tightening torque 20 Nm (15 ftlb.)

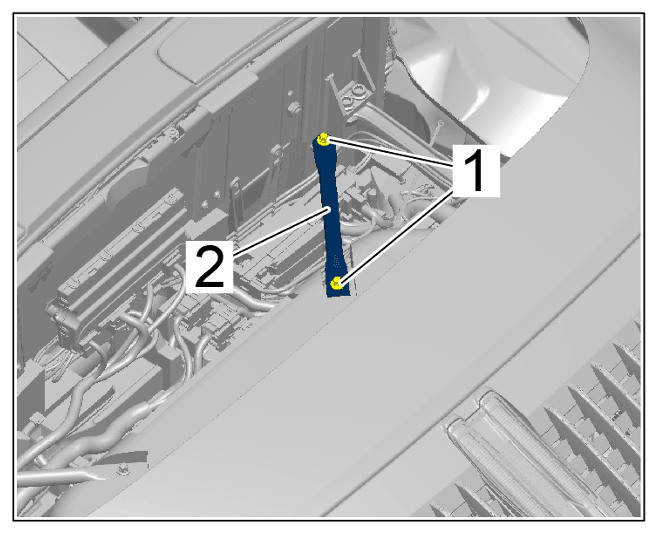

G15535795Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Strut
