Removing Front Relay Carrier (Cabriolet)

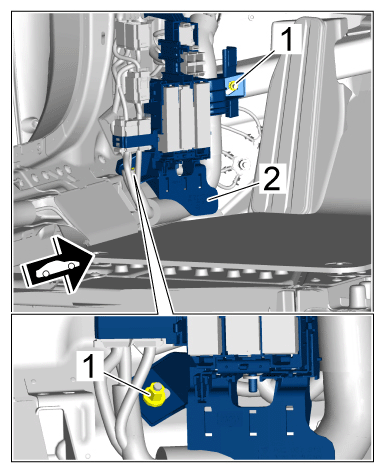

  1. Unscrew fastening nuts -1-  from front relay carrier (Coupe) -2-  .
    G15535797Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening nuts

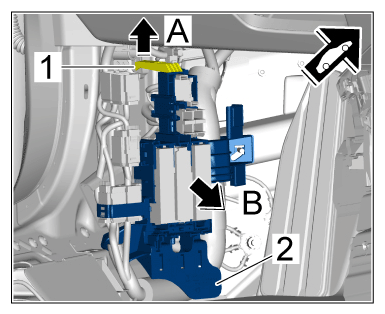

  2. Release locking lug -1-  (-arrow A-  ) and remove front relay carrier (Coupe) -2-  (-arrow B-  ).
G15535798Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Locking lug
