Removing Wire Harness For Number Plate Light

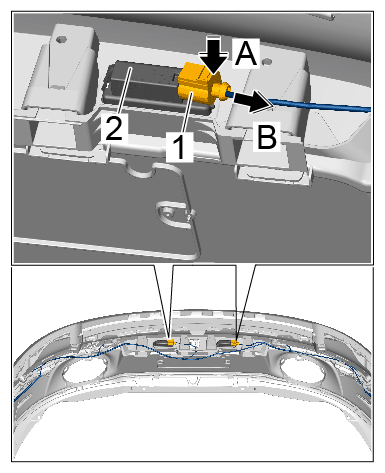

1. Release electric plug connection -1-  for number plate light -2-  (-arrow A-  ) and disconnect it -arrow B-  .

   942919 REMOVING AND INSTALLING NUMBER PLATE LIGHT

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

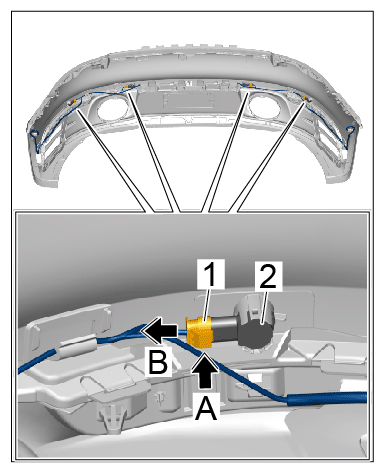

2. Release electric plug connection -1-  for ParkAssist sensor -2-  (-arrow A-  ) and disconnect it -arrow B-  .

   917519 REMOVING AND INSTALLING PARKASSIST SENSOR

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connections

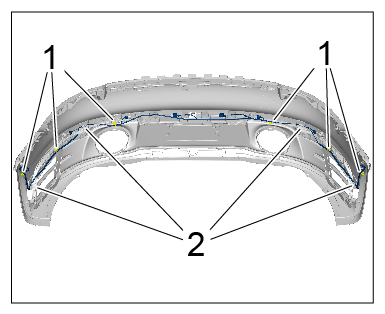

3. Cut tie-wrap -1-  , remove wire harness for number plate light from cable holders -2-  and remove remaining bits.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wire harness for number plate light
