Removing Wire Harness For Rear Spoiler

1. Remove wire harness for rear spoiler -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

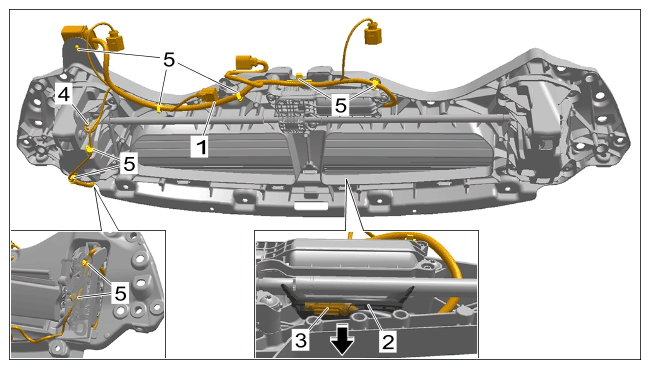

Rear spoiler wire harness

1. 1.1 Pull off grommet -2-  , release electric plug connection for spoiler drive motor -3-  in -direction of arrow-  and disconnect it.
2. 1.2 Release and disconnect electric plug connection for spoiler position sensor -4-  .
3. 1.3 Unclip clips -5-  using a plastic spatula.
4. 1.4 Remove wire harness for rear spoiler -1-  from the spoiler drive.
