Installing Wire Harness For Rear Spoiler

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

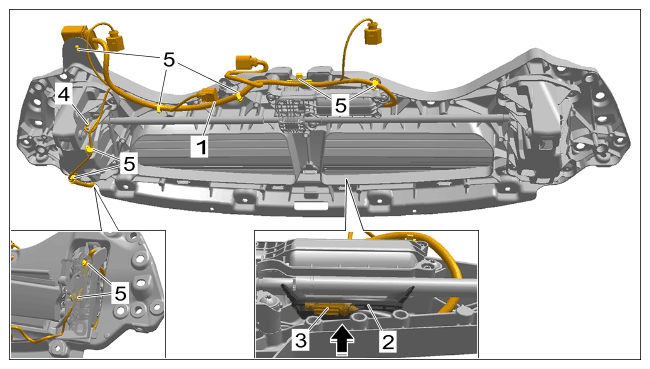

Rear spoiler wire harness

1. 1.1 Position wire harness for rear spoiler -1-  on the spoiler drive.
2. 1.2 Check clips -5-  for signs of damage.
3. 1.3 Clip in clips -5-  and check that they are fitted securely.
4. 1.4 Connect electric plug connection for spoiler position sensor -4-  until it locks securely.
5. 1.5 Connect electric plug connection for spoiler drive motor -3-  in -direction of arrow-  , lock it and push on grommet -2-  .
