Installing Line From Sensor On Left Side Member To Triggering Unit
NOTE:
Incorrect handling of main wire harness
- Risk of damage to lines
→ The main wire harness contains all airbag lines, antenna lines and optical waveguides.
→ The main wire harness must not be separated and is always replaced as a complete wire harness when carrying out extensive repairs.
→ If individual lines are damaged, shut off these lines and install new lines. Lay the new lines along the main wire harness and secure them to the main wire harness.
Information
- When installing the wire harness, make sure the insulation of the line is not damaged.
Information
- The new lines will be secured to the fastening points for the old lines.
- The old wire harness remains installed in the vehicle.
- The old wire harness will only be disconnected/unplugged directly at the connected components.
Information
Allocation of lines - see the appropriate wiring diagram.
- Detach carpet on left side member and fold it aside as far as required so that you can reach the main wire harness.

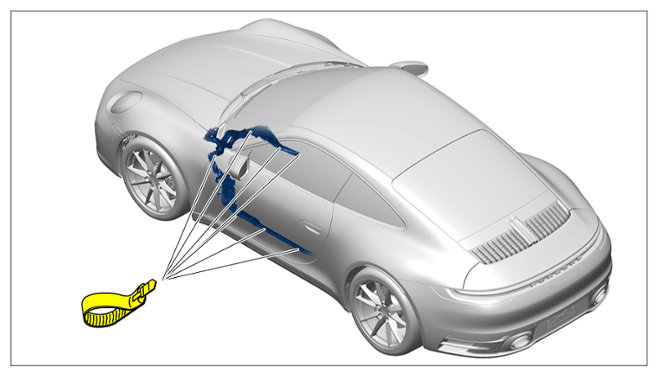

- Route sub-part along the main wire harness.
- 2.1 Guide sub-part through the existing cable ducts and tie it to the main wire harness with tie-wraps.
Information
Allocation of lines - see the appropriate wiring diagram.
- 2.2 To do this, pull the carpet at the left aside at the right-hand side close to the heating/fresh-air unit.
Sub-part of line from sensor on left side member to triggering unit
- 2.1 Guide sub-part through the existing cable ducts and tie it to the main wire harness with tie-wraps.

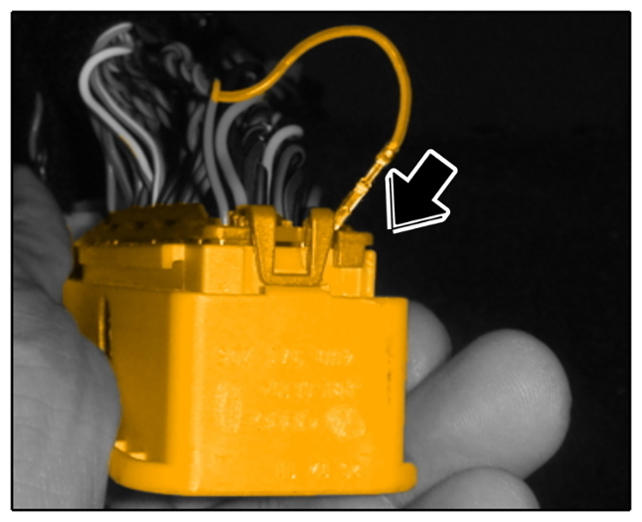

- Plug in new lines on the contact strip -arrow-
until the contact engages securely.
New lines in contact strip
- 3.1 Push in lock for electric plug connection.
- 3.2 Push in cover for electric plug connection.
- Connect plug connection for airbag sensor on the left side member.
