Installing Line From Front Right Sensor To Triggering Unit

Information

• When installing the wire harness, make sure the insulation of the line is not damaged.

Information

• The new lines will be secured to the fastening points for the old lines.
• The old wire harness remains installed in the vehicle.
• The old wire harness will only be disconnected/unplugged directly at the connected components.

Information

Allocation of lines - see the appropriate wiring diagram.

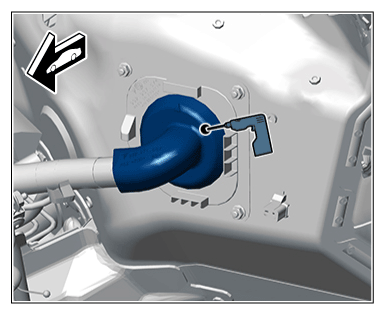

1. Drill through feed-through element in the firewall. > Diameter 5 mm
   1. 1.1 Make sure not to damage any lines in the passenger compartment.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Feed-through element in firewall

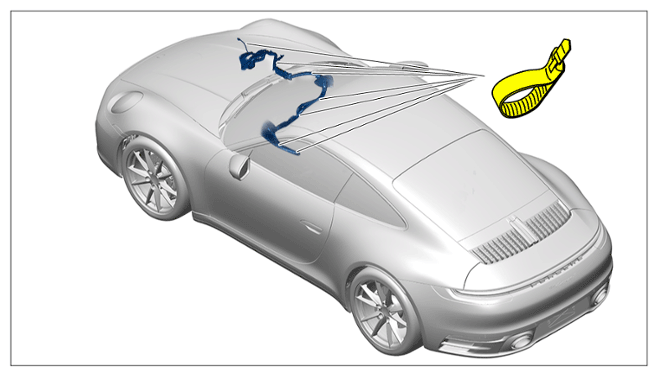

2. Route section along the main wire harness.
   1. 2.1 Guide section of line through the existing cable ducts and tie it to the main wire harness with tie-wraps.

      Information

      Allocation of lines - see the appropriate wiring diagram.

   2. 2.2 To do this, pull the carpet at the left aside at the right-hand side close to the heating/fresh-air unit.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Section of line from front right sensor to triggering unit

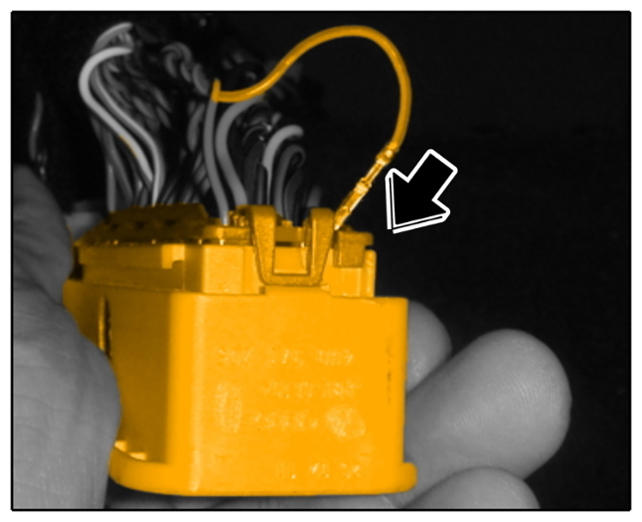

3. Plug in new lines on the contact strip -arrow-  until the contact engages securely.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   New lines in contact strip

   1. 3.1 Push in lock for plug connection.
   2. 3.2 Push in cover for plug connection.
4. Plug in plug connection for airbag sensor.

   695119 REMOVING AND INSTALLING AIRBAG SENSOR

5. Seal the feed-through element.
   1. 5.1 Check that the new airbag lines are routed correctly.
   2. 5.2 Seal the bore from inside and outside with suitable sealing compound.
