Removing Wire Harness For PARKASSIST

1. Release electric plug connection for number plate light at the left and right and disconnect it.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

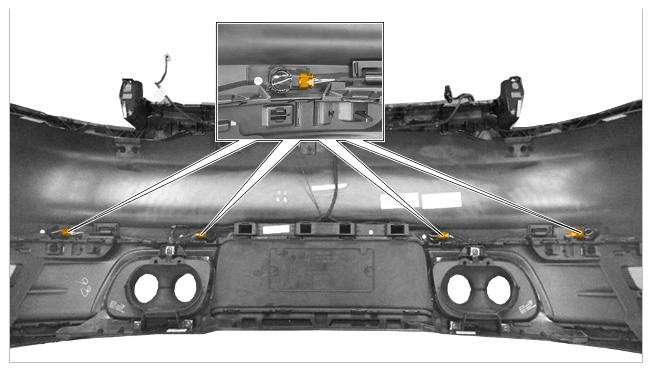

   Electric plug connection for number plate light

2. Release and disconnect electric plug connections for ParkAssist sensor.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

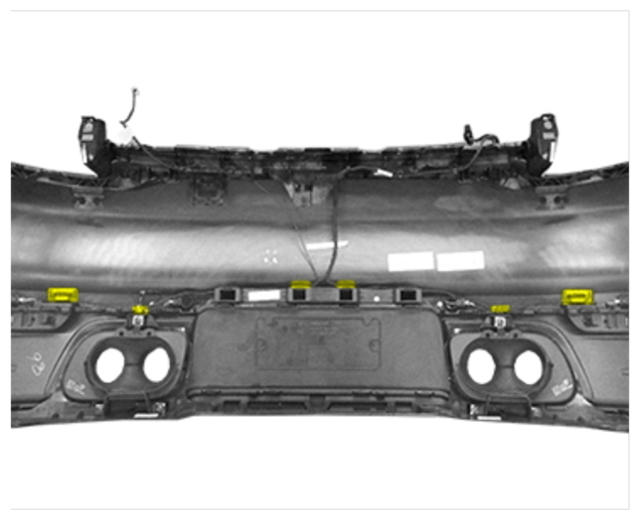

   Electric plug connection for ParkAssist sensor

3. Unclip wire harness for ParkAssist from the guides and remove it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

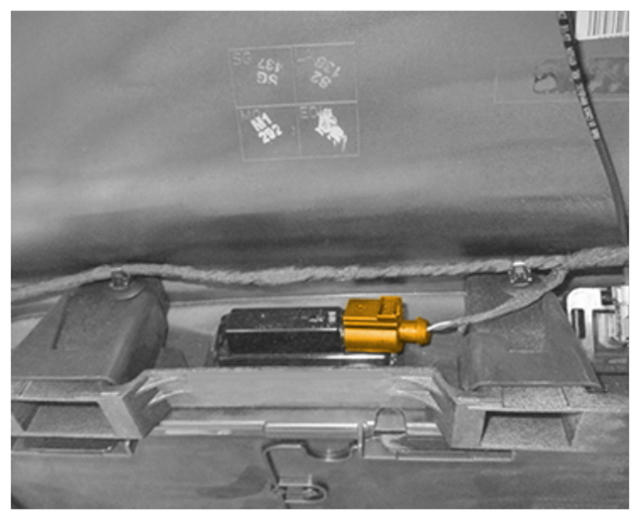

Unclipping wire harness for ParkAssist
