Removing Wiring For Power Seats

1. Release and disconnect electric plug connection for seat adjustment motor.

   Refer to WM, 728719 REMOVING AND INSTALLING MOTOR FOR SEAT ADJUSTMENT

2. Release and disconnect electric plug connection for seat occupancy detection.

   695619 REMOVING AND INSTALLING SEAT OCCUPANCY DETECTION SYSTEM

3. Release and disconnect electric plug connections for backrest wiring at the connection point.

   > 975619 REMOVING AND INSTALLING WIRING FOR FRONT-SEAT BACKREST

4. Release and disconnect electric plug connections for seat-surface extension.

   Refer to WM, 740819 REMOVING AND INSTALLING FRONT SEAT-SURFACE EXTENSION

5. Release and disconnect electric plug connection for seat-belt buckle.

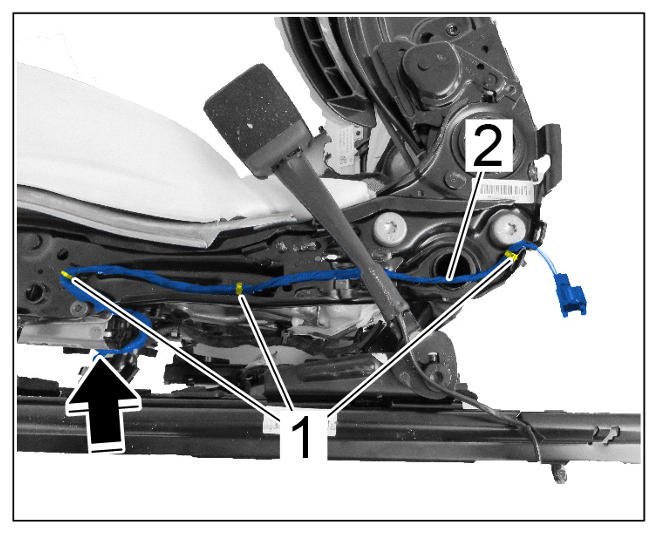

6. Unclip fixing clip -1-  and pull section of line for seat-surface extension -2-  down through the seat frame -arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fixing clip

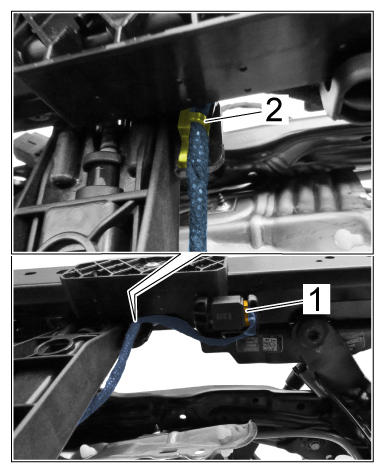

7. Unclip fixing clips -1-  from section of line for seat-belt buckle -2-  and guide section of line for seat-belt buckle -2-  down through the seat frame -arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fixing clips

8. Release and disconnect electric plug connection for seat adjustment sensor -1-  and loosen and remove fixing clip -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

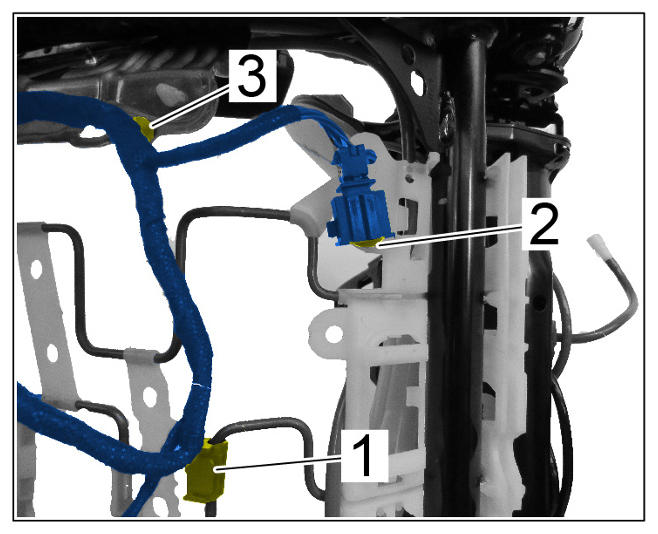

9. Loosen and remove fixing clip -1-  , -2-  and -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fixing clips

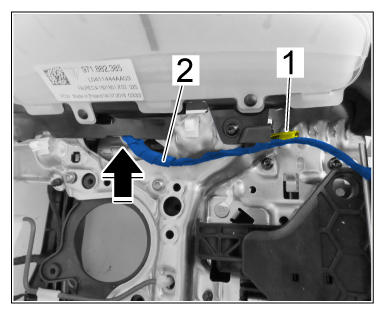

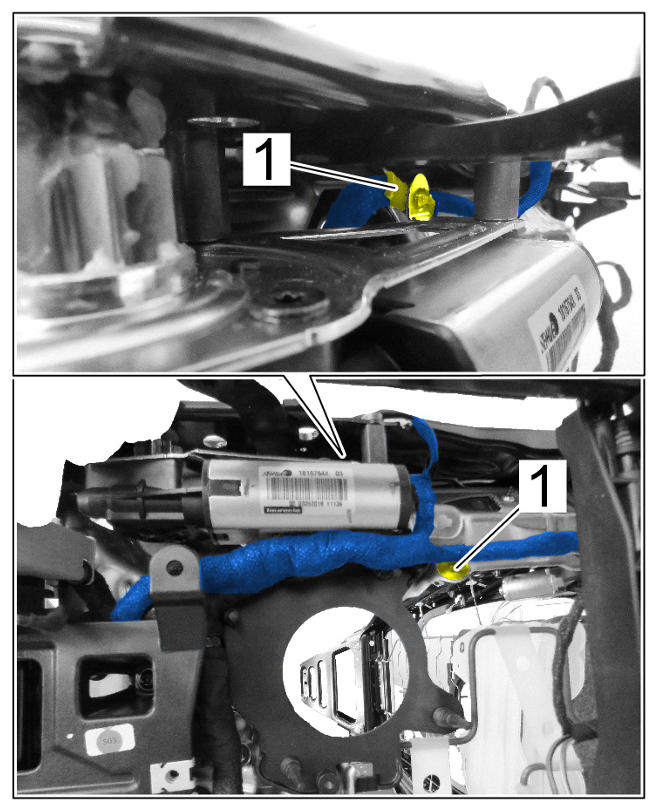

10. Loosen and remove fixing clips -1-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fixing clips

11. Release and disconnect electric plug connection for seat height adjustment motor -1-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

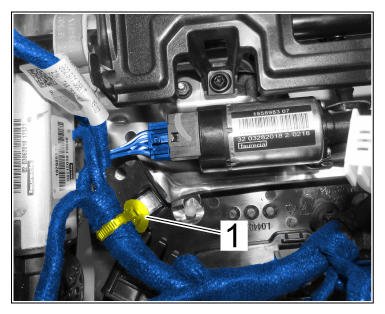

12. Loosen and remove fixing clip -1-  on suction fan holder.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fixing clip

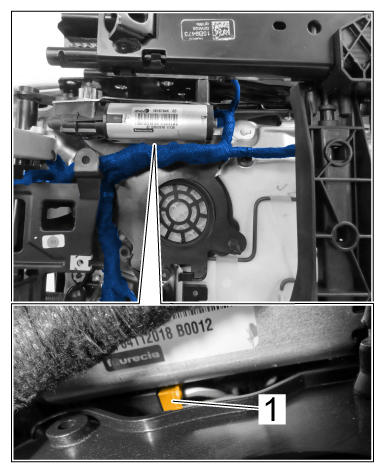

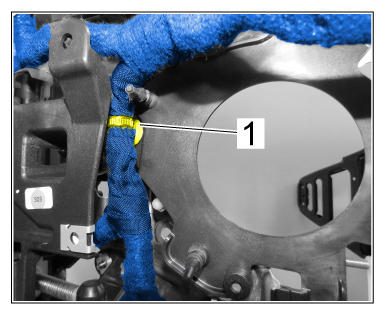

13. Loosen and remove fixing clip -1-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fixing clip

14. Remove ground line -3-  .
    1. 14.1 Release and unplug electric plug connection -1-  .
    2. 14.2 Screw off fastening nut -2-  .
    3. 14.3 Remove ground line -3-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

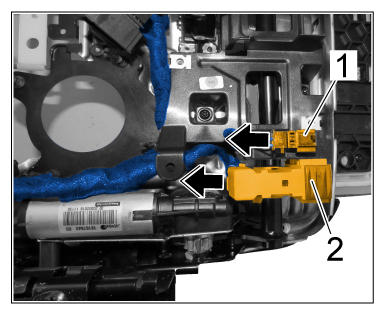

15. Disconnect electric plug connections for wire harness connection -1-  and -2-  from the holder.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

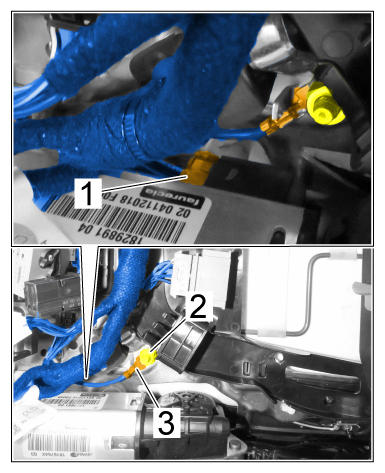

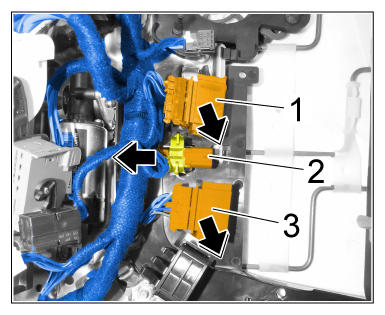

16. Release and disconnect electric plug connections at connection point for line -1-  , -2-  and -3-  and push them out of the holders -arrow-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connections
