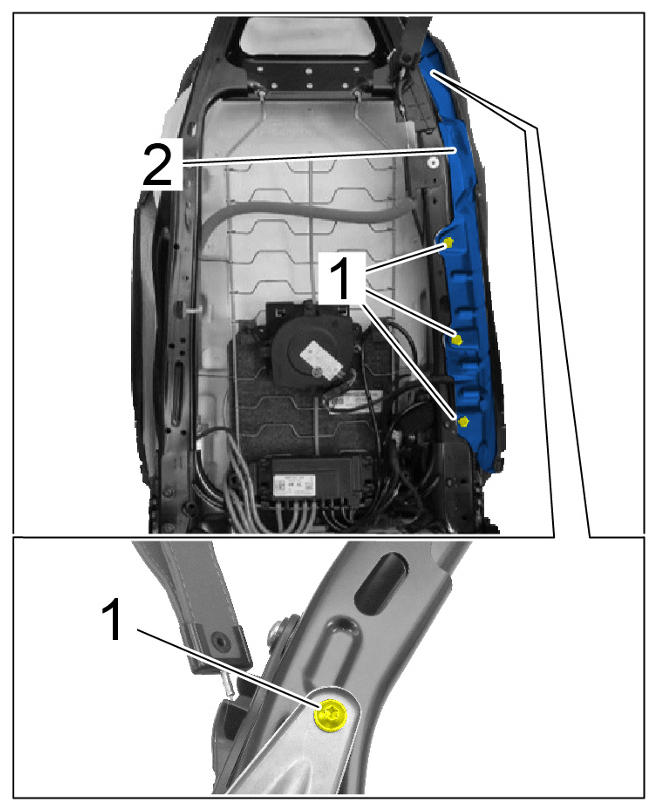

| Fastening screws securing protective plate to seat |
Item 1 |
Tightening torque |
5.6 Nm (4.1 ftlb.) |
+/- 1.4 Nm (1 ftlb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screws |

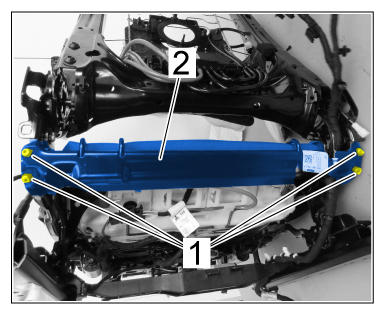

| Fastening screws securing ISOFIX to seat |
Item 1 |
Tightening torque |
6.0 Nm (4.5 ftlb.) |
+/- 1.0 Nm (0.5 ftlb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
ISOFIX |
