Removing Wiring For Front-Seat Backrest

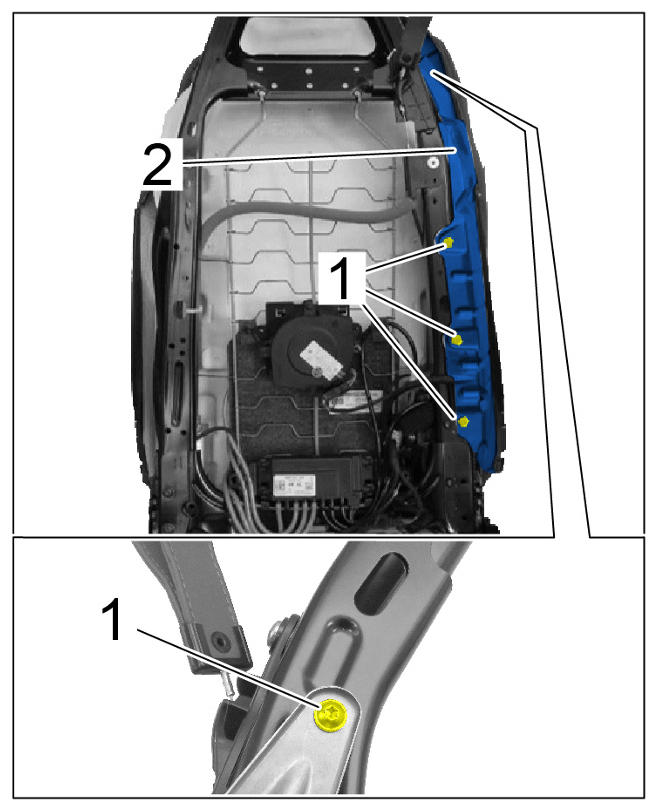

  1. Unscrew fastening screws -1-  from protective plate -2-  .
    G15535728Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Protective plate

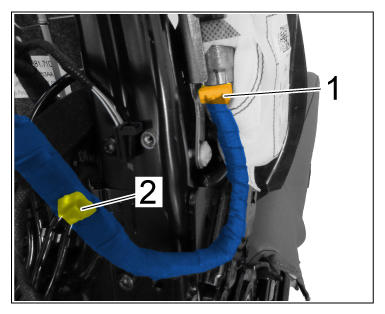

  2. Release and disconnect electric plug connection for side airbag -1-  and loosen and remove fixing clip -2-  .
    G15535729Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

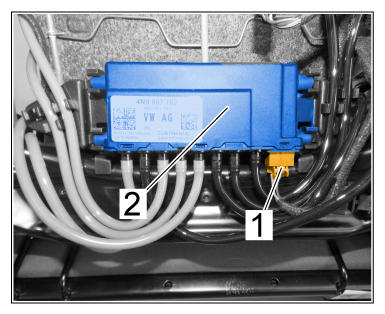

  3. Release and disconnect electric plug connection -1-  from control valve for air cushion -2-  .
    G15535730Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Control valve for air cushion

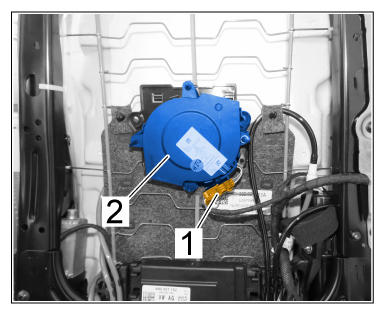

  4. Release and disconnect electric plug connection -1-  from suction fan for backrest -2-  .
    G15535731Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Suction fan for backrest

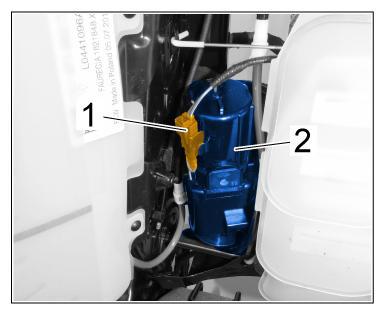

  5. Release and disconnect electric plug connection -1-  from lumbar-support motor -2-  .
    G15535732Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Lumbar-support motor

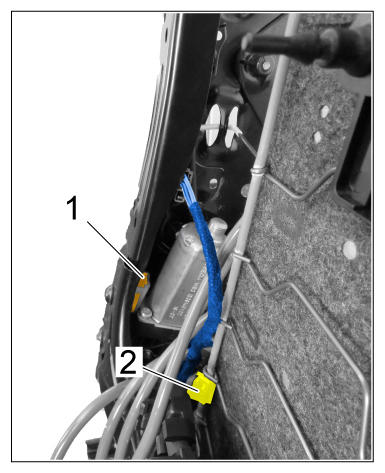

  6. Release and disconnect electric plug connection for servo motor for seat backrest -1-  and loosen and remove fixing clip -2-  .
    G15535733Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Servo motor for seat backrest

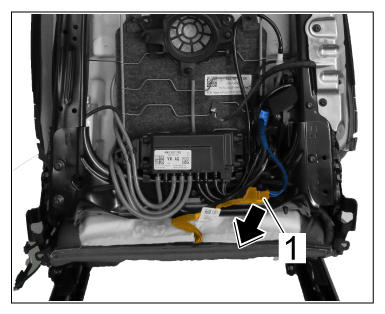

  7. Disconnect and unclip electric plug connection for backrest heating -1-  (-arrow-  ).
    G15535734Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Backrest heating

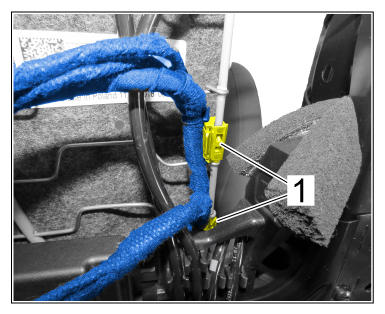

  8. Loosen and remove fixing clips -1-  .
    G15535735Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fixing clips

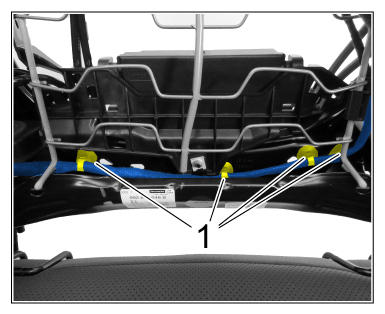

  9. Loosen and remove fixing clips -1-  .
    G15535736Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fixing clips

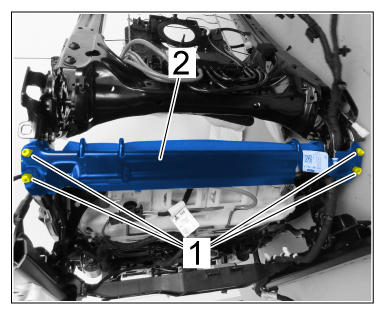

  10. Unscrew fastening screws -1-  from ISOFIX -2-  .
    G15535737Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    ISOFIX

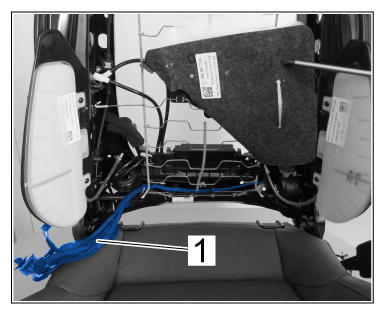

  11. Guide line for front-seat backrest -1-  down out of the backrest frame.
    G15535738Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Line for front-seat backrest

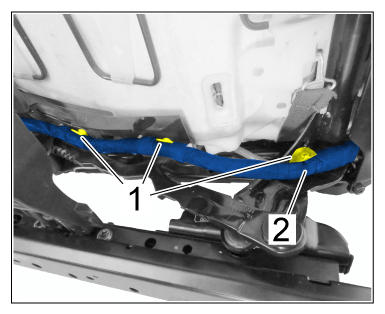

  12. Loosen and remove fixing clips -1-  from line for front-seat backrest -2-  .
    G15535739Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fixing clips

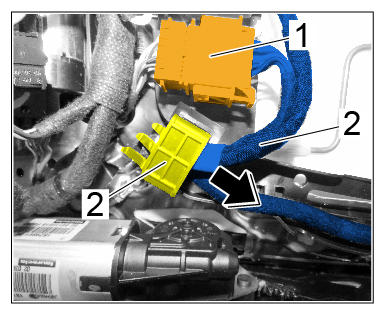

  13. Remove line for front-seat backrest -3-  .
    1. 13.1 Release and disconnect electric plug connection at connection point for backrest wiring -1-  .
    2. 13.2 Pull line for front-seat backrest -3-  out of the holder -2-  and remove it -arrow-  .
    G15535740Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Connection point for line
