Removing Wire Harness For Engine

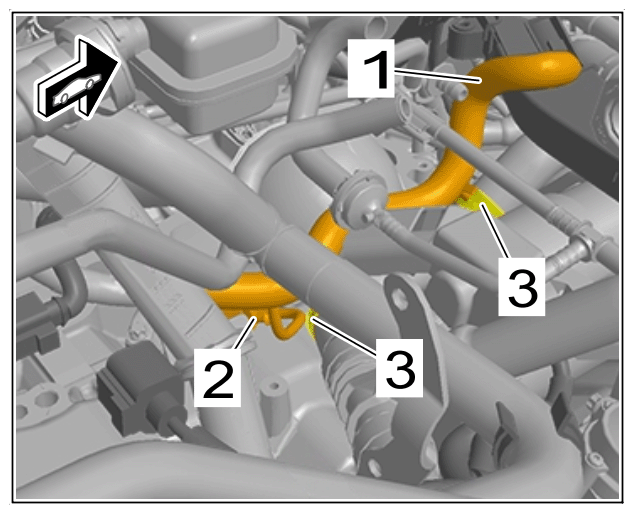

1. Disconnect wiring harness for oil pressure control valve -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Wiring harness for oil pressure control valve

   1. 1.1 Release and disconnect electric plug connection for oil pressure control valve -2-  .
   2. 1.2 Unclip clip -3-  using a plastic spatula.

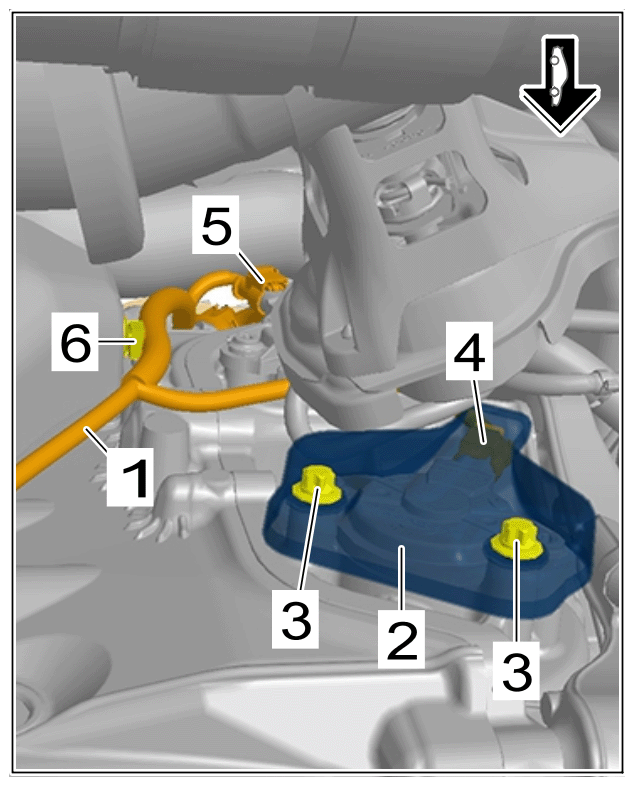

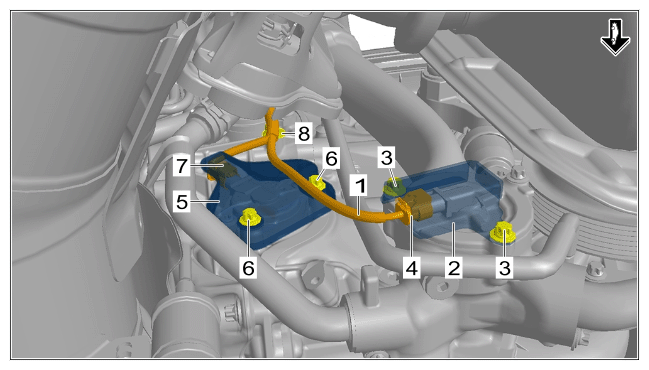

2. Disconnect wiring harness for coolant regulator and camshaft controller -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Wiring harness for coolant regulator and camshaft controller

   1. 2.1 Remove heat shield for coolant regulator -2-  .
      1. 2.1.1 Unscrew and remove screws -3-  .
      2. 2.1.2 Remove heat shield for coolant regulator -2-  .
   2. 2.2 Release and disconnect electric plug connection for coolant regulator -4-  .

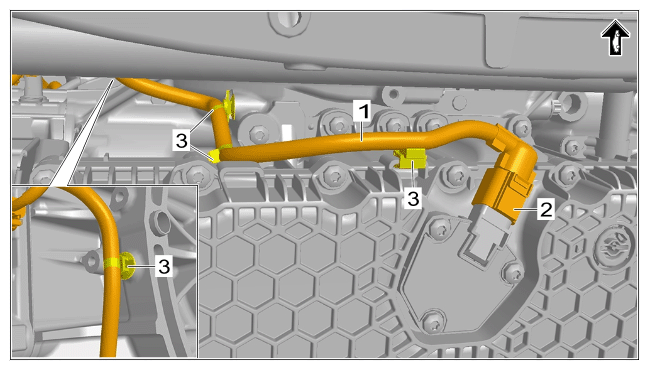

   3. 2.3 Remove heat shield for camshaft controller -5-  .
      1. 2.3.1 Unscrew and remove screws -6-  .
      2. 2.3.2 Remove heat shield for camshaft controller -5-  .
   4. 2.4 Release and disconnect electric plug connection for camshaft controller on outlet side of cylinder bank 1 -7-  .
   5. 2.5 Unclip clip -8-  using a plastic spatula and guide wiring harness -1-  upwards.

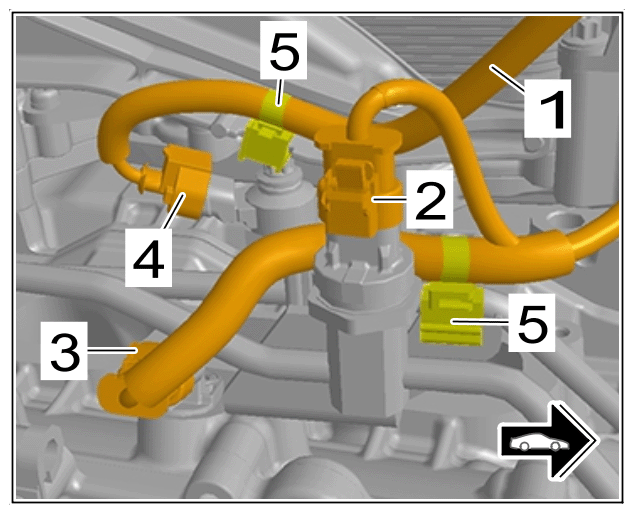

3. Disconnect wiring harness for camshaft controller for cylinder bank 2 -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Wiring harness for camshaft controller for cylinder bank 2

   1. 3.1 Remove heat shield for camshaft controller on outlet side -2-  .
      1. 3.1.1 Unscrew and remove screws -3-  .
      2. 3.1.2 Remove heat shield for camshaft controller on outlet side -2-  .
   2. 3.2 Release and disconnect electric plug connection for camshaft controller on outlet side -4-  .
   3. 3.3 Release and disconnect electric plug connection for camshaft controller on intake side -5-  .
   4. 3.4 Unclip clip -6-  using a plastic spatula.
   5. 3.5 Guide wiring harness for camshaft controller -1-  together with wiring harness for oil pressure control valve upwards.

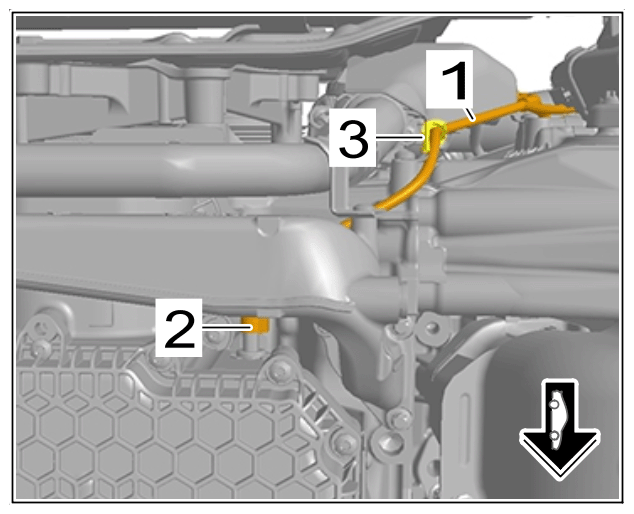

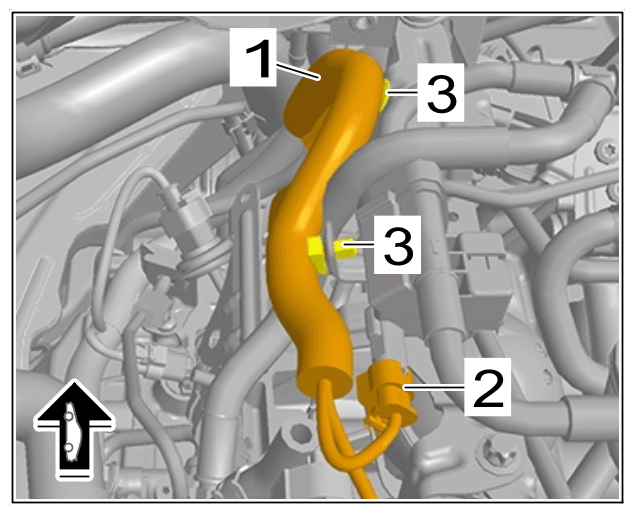

4. Disconnect wiring harness for oil-level sender -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Wiring harness for oil-level sender

   1. 4.1 Release and disconnect electric plug connection for oil-level sender -2-  .
   2. 4.2 Unclip clips -3-  using a plastic spatula and guide wiring harness for oil-level sender -1-  upwards.

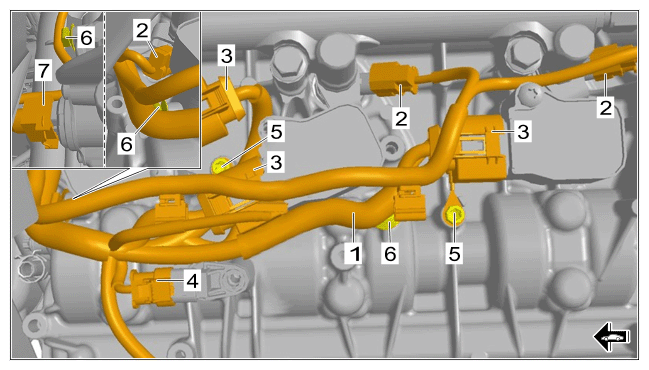

5. Disconnect wiring harness for cylinder head on cylinder bank 1 -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cylinder head wiring harness, cylinder bank 1

   1. 5.1 Release and disconnect electric plug connections for fuel injectors -2-  .
   2. 5.2 Release and disconnect electric plug connections for ignition coils -3-  .
   3. 5.3 Release and disconnect electric plug connection on camshaft sensor -4-  .
   4. 5.4 Unscrew screws on ground lines -5-  .
   5. 5.5 Unclip clips -6-  using a plastic spatula.
   6. 5.6 Release and disconnect electric plug connection for valve lift adjustment -7-  .

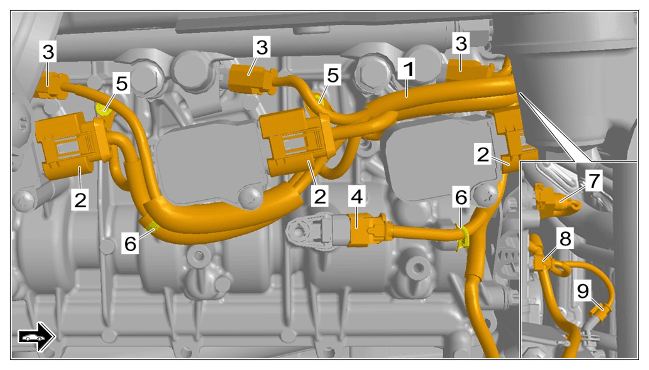

6. Disconnect wiring harness for cylinder head on cylinder bank 2 -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cylinder head wiring harness, cylinder bank 2

   1. 6.1 Release and disconnect electric plug connections for fuel injectors -3-  .
   2. 6.2 Release and disconnect electric plug connections for ignition coils -2-  .
   3. 6.3 Release and disconnect electric plug connection on camshaft sensor -4-  .
   4. 6.4 Unscrew screws on ground lines -5-  .
   5. 6.5 Unclip clip -6-  using a plastic spatula.
   6. 6.6 Release and disconnect electric plug connection for valve lift adjustment -7-  .
   7. 6.7 Release and disconnect electric plug connection for coolant temperature sensor -8-  .
   8. 6.8 Release and disconnect electric plug connection for pulse sender -9-  .

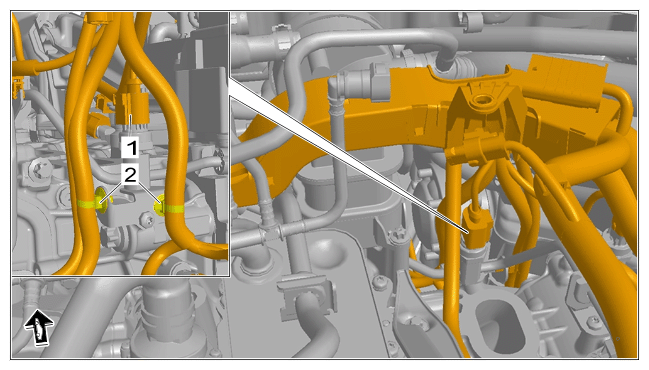

7. Disconnect wiring harness for fuel low-pressure sensor.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Wiring harness for fuel low-pressure sensor

   1. 7.1 Release and disconnect electric plug connection for fuel low-pressure sensor -1-  .
   2. 7.2 Unclip clips -2-  using a plastic spatula.
   3. 7.3 Guide wiring harness for fuel low-pressure sensor upwards.
8. Disconnect wiring harness for fuel high-pressure sensor on cylinder bank 2 -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Wiring harness for fuel high-pressure sensor on cylinder bank 2

   1. 8.1 Release and disconnect electric plug connection for fuel high-pressure sensor -2-  .
   2. 8.2 Release and disconnect electric plug connection on camshaft sensor -3-  .
   3. 8.3 Release and disconnect electric plug connection for knock sensor -4-  .
   4. 8.4 Unclip clips -5-  using a plastic spatula.
9. Disconnect wiring harness for tank vent valve -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Wiring harness for tank vent valve

   1. 9.1 Release and disconnect electric plug connection on tank vent valve -2-  .
   2. 9.2 Unclip clips -3-  from the holder using a plastic spatula.
   3. 9.3 Only for China or USA:

      Release and disconnect electric plug connection for tank ventilation pressure sensor.

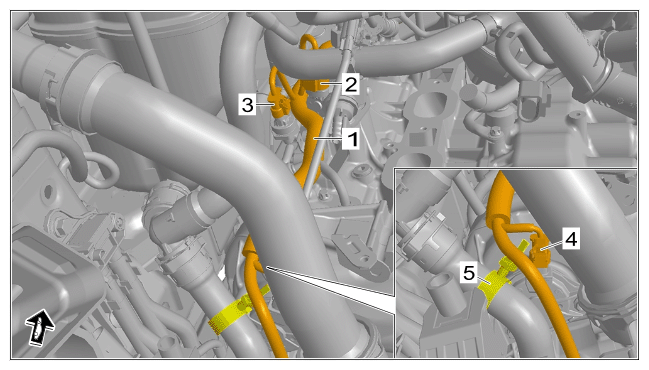

10. Disconnect wiring harness for high-pressure pump for cylinder bank 1 -1-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Wiring harness for high-pressure pump for cylinder bank 1

    1. 10.1 Release and disconnect electric plug connection for high-pressure pump -2-  .
    2. 10.2 Release and disconnect electric plug connection for fuel high-pressure sensor -3-  .
    3. 10.3 Release and disconnect electric plug connection for camshaft controller on intake side -4-  .
    4. 10.4 Unclip clip -5-  using a plastic spatula and guide wiring harness for high-pressure pump for cylinder bank 1 -1-  upwards.

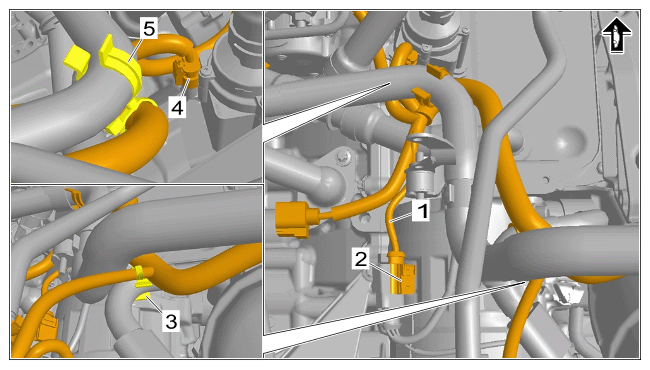

11. Disconnect wiring harness for high-pressure pump for cylinder bank 2 -1-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Wiring harness for high-pressure pump for cylinder bank 2

    1. 11.1 Release and disconnect electric plug connection for high-pressure pump -2-  .
    2. 11.2 Release and disconnect electric plug connection for oil-pressure sender -3-  .
    3. 11.3 Unclip clip -4-  using a plastic spatula.

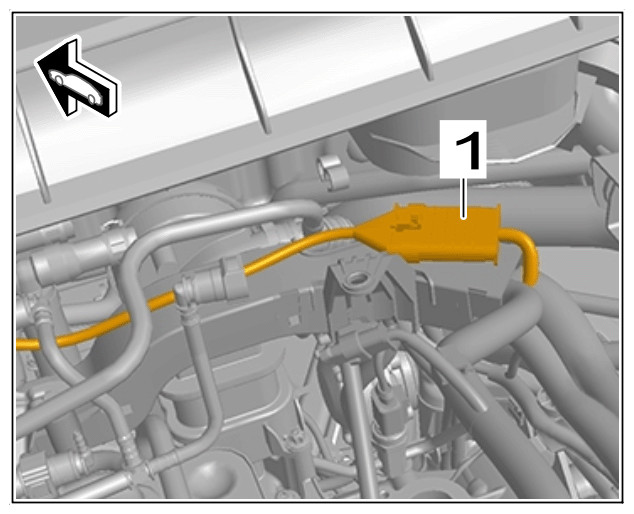

12. Release and disconnect electric plug connection for vacuum valves -1-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection for vacuum valves

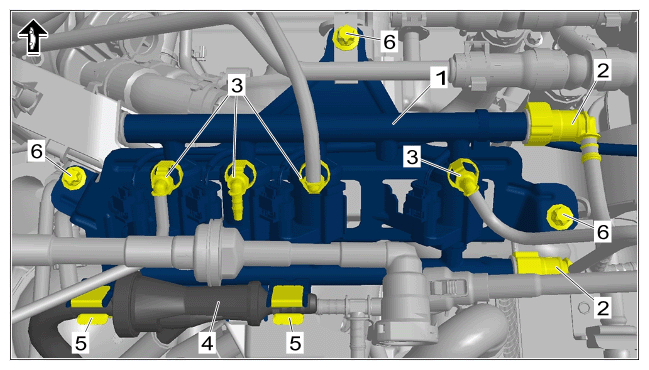

13. Remove holder for vacuum valves -1-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Holder for vacuum valves

    1. 13.1 Release and disconnect plug-in couplings -2-  .
    2. 13.2 Release and disconnect plug-in couplings -3-  .
    3. 13.3 Unclip line -4-  from holders -5-  .
    4. 13.4 Unscrew screws on holder -6-  .
    5. 13.5 Remove holder with vacuum valves -1-  .
14. Disconnect wiring harness for knock sensor on cylinder bank 1 -1-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Wiring harness for knock sensor on cylinder bank 1

    1. 14.1 Release and disconnect electric plug connection for knock sensor -2-  .
    2. 14.2 Unclip holder for wire harness -3-  .

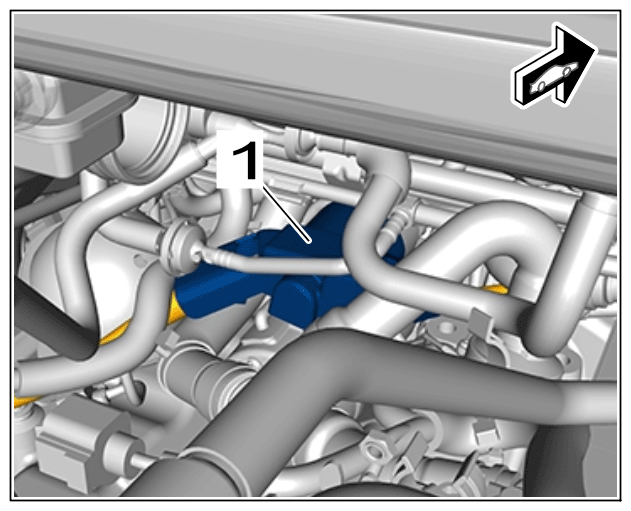

15. Unclip protection cap on starter -1-  and remove.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Protection cap for starter

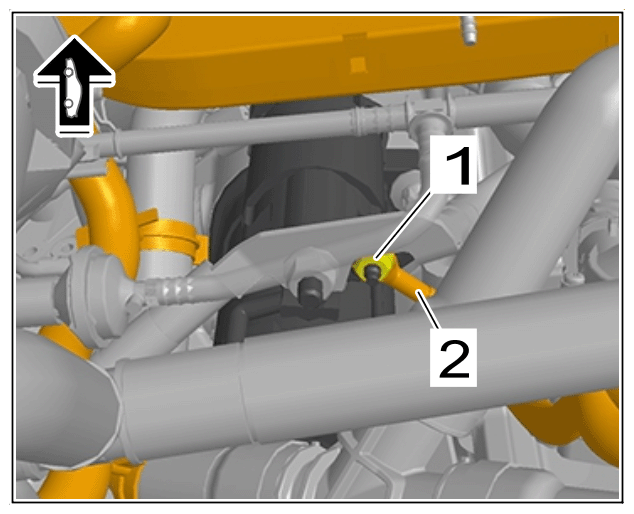

16. Unscrew nut -1-  and remove electric line for terminal 50 -2-  from the starter.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric line from terminal 50 to starter

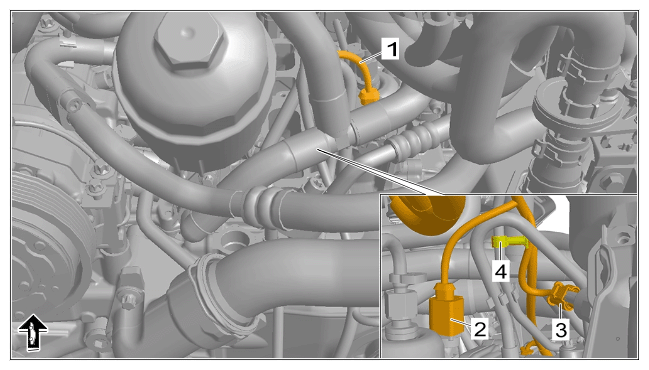

17. Disconnect wiring harness for air-conditioning compressor -1-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Wiring harness for air-conditioning compressor

    1. 17.1 Release and disconnect electric plug connection for air-conditioning compressor -2-  .
    2. 17.2 Unclip clip -3-  using a plastic spatula.
    3. 17.3 Release and disconnect electric plug connection for coolant pump -4-  .
    4. 17.4 Unclip clip -5-  using a plastic spatula.
    5. 17.5 Guide wiring harness for air-conditioning compressor -1-  forward.

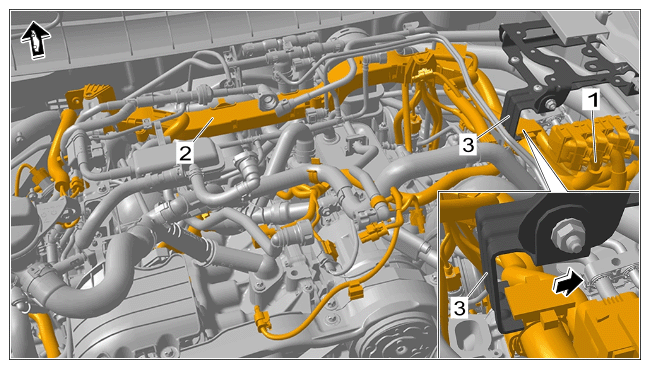

18. Remove engine wire harness -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Engine wire harness

1. 18.1 Release locking lugs, open line guide -2-  and remove engine wire harness -1-  .
2. 18.2 Pull engine wire harness -1-  off holder -3-  (-Arrow-  ).
3. 18.3 Carefully remove engine wire harness -1-  from the engine compartment.
