Technical Values

Location	Description	Type	Basic value	Tolerance 1
Fastening nut securing ground line for front wire harness	New fastening nut - Item 1	Tightening torque	2.7 Nm (2 ftlb.)

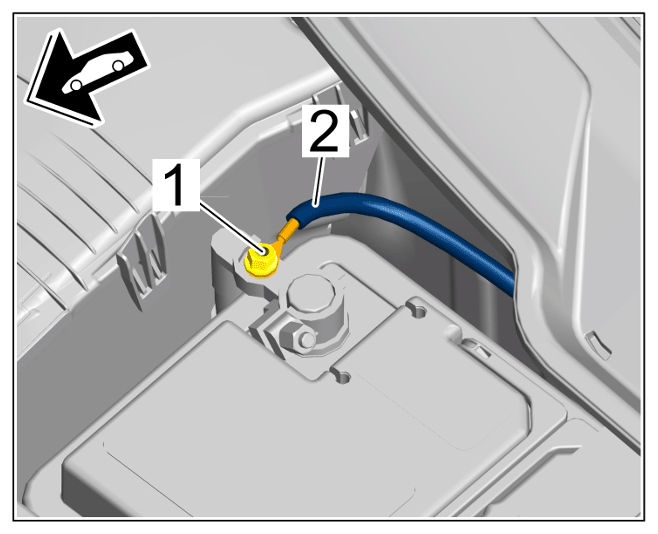

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Ground line
Fastening nut securing B+ line for battery	New fastening nut - Item 1	Tightening torque	5 Nm	+/- 0.5 Nm (0.36 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. B+ line for battery
Fastening screws securing battery console to body	Item 2	Tightening torque	23 Nm (17 ftlb.)

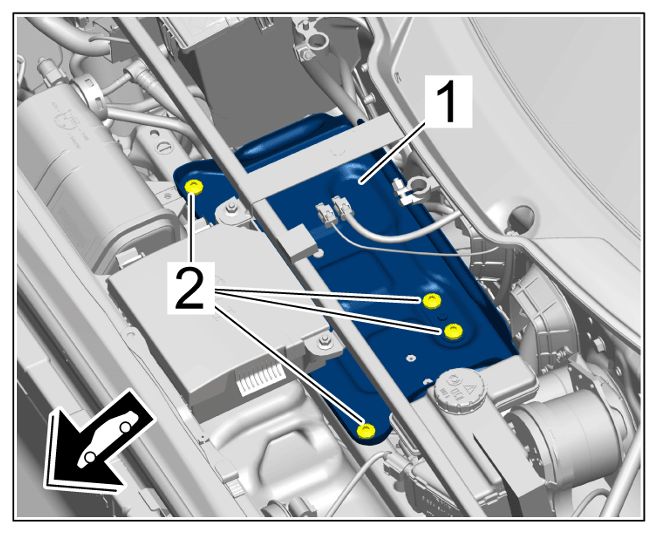

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Battery console
Fastening nut securing B+ line to power distributor	New fastening nut - Item 1	Tightening torque	12 Nm (8.8 ftlb.)

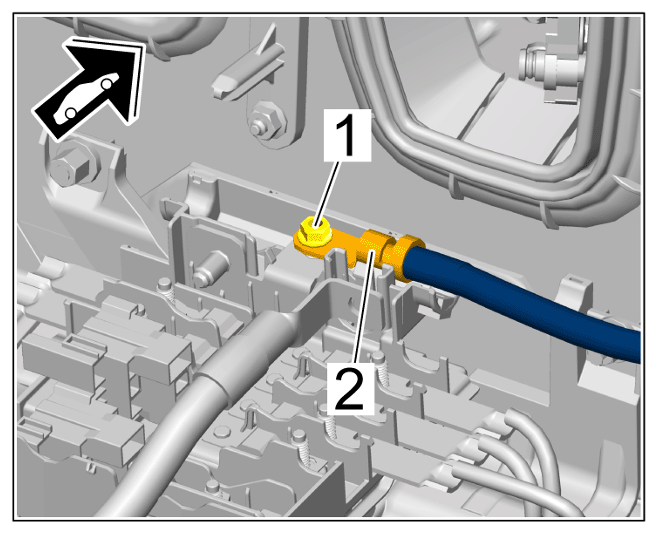

Courtesy of PORSCHE CARS NORTH AMERICA, INC. B+ line
Fastening nut securing B+ line to transmission connection point	New fastening nut - Item 2	Tightening torque	15 Nm (11 ftlb.)

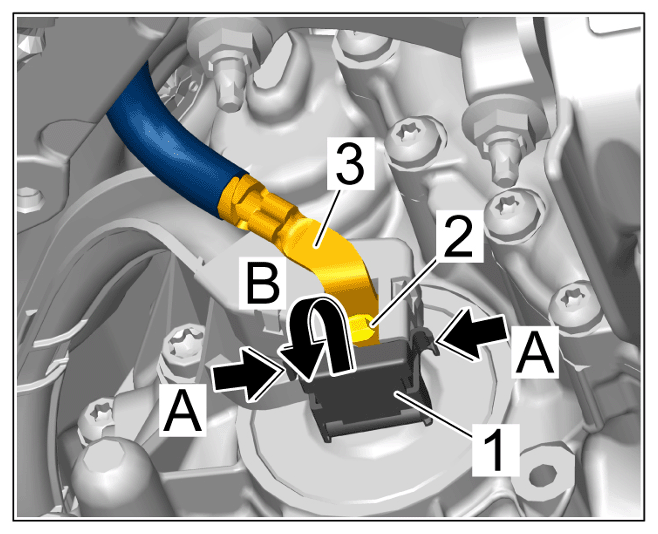

Courtesy of PORSCHE CARS NORTH AMERICA, INC. B+ line on transmission
Fastening nut securing B+ line to power distributor	New fastening nut - Item 1	Tightening torque	12 Nm (8.8 ftlb.)

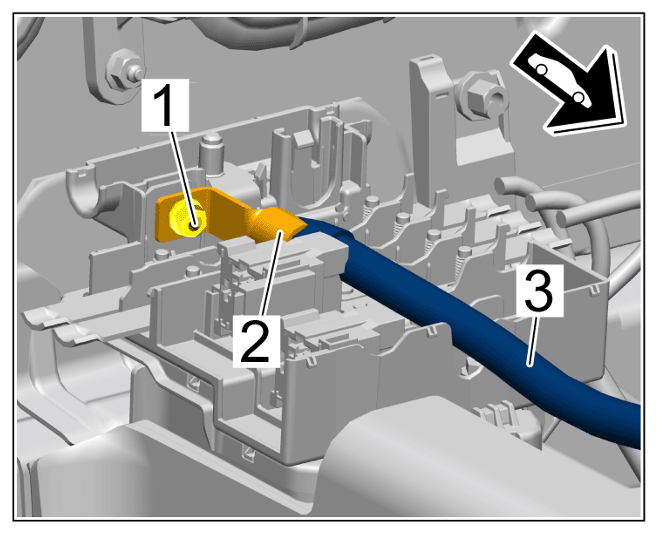

Courtesy of PORSCHE CARS NORTH AMERICA, INC. B+ line to power distributor
Fastening nut securing B+ line to transmission connection point	New fastening nuts - Item 2	Tightening torque	15 Nm (11 ftlb.)

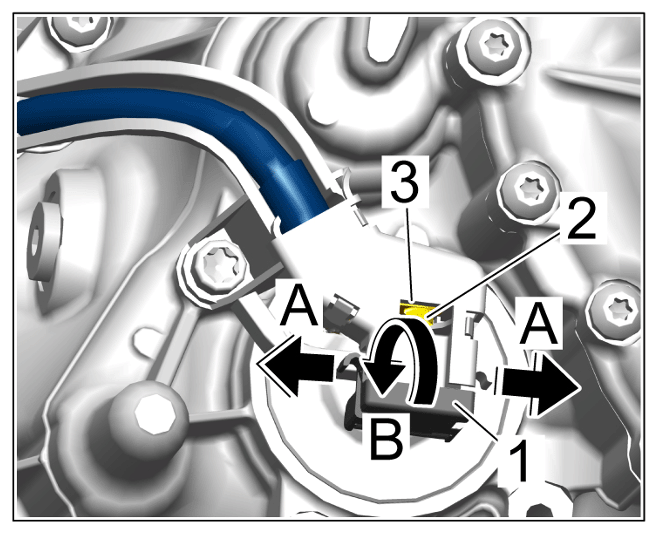

Courtesy of PORSCHE CARS NORTH AMERICA, INC. B+ wire harness for starter battery at transmission connection point
Fastening screws for changeover valve	Item 1	Tightening torque	0 Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Battery-starter wire harness change-over valve
Transmission bracket to body	Hexagon-head bolt, M10 x 42/replace	Initial tightening	30 Nm (22.1 ftlb.)
Transmission bracket to body	Hexagon-head bolt, M10 x 42	Torque angle	60°
Transmission support to body	Collar nut, M10	Torque angle	60°
Transmission bracket to transmission mount	Collar nut, M10/replace	Initial tightening	30 Nm (22.1 ftlb.)
