Removing B+ Line From Power Distributor To Transmission Connection Point

Disconnect B+ line from power distributor to transmission connection point.

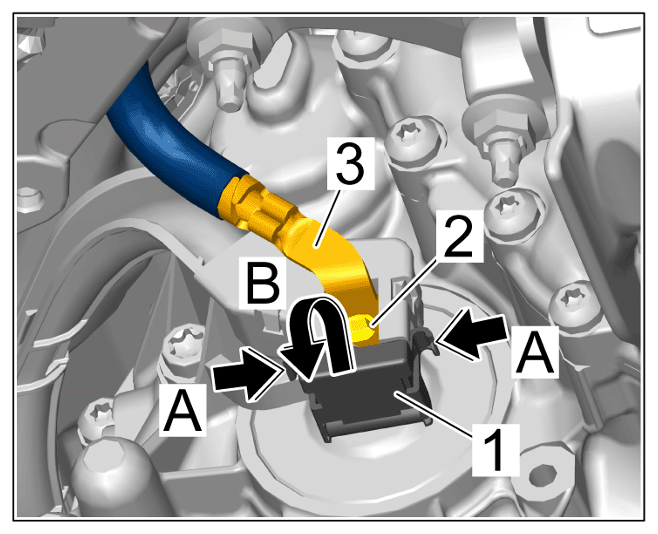

1. 1.1 Release cover -1- (-arrows A- ) and open it -arrow B- .
2. 1.2 Screw off fastening nut -2- .
3. 1.3 Remove cable shoe -3- from the fastening bolt.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

B+ line from power distributor to transmission connection point
Unclip B+ line at the underbody, check for damage and replace it if necessary.

Disconnect B+ line from power distributor to transmission connection point -2- at the power distributor.

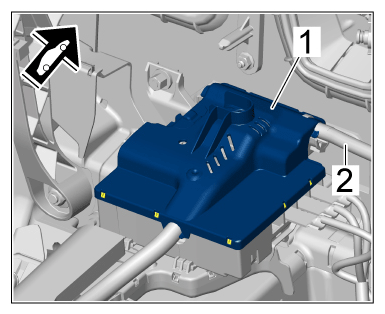

3.1 Unclip and remove main fuse box cover -1- .

G15535671

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Main fuse box cover

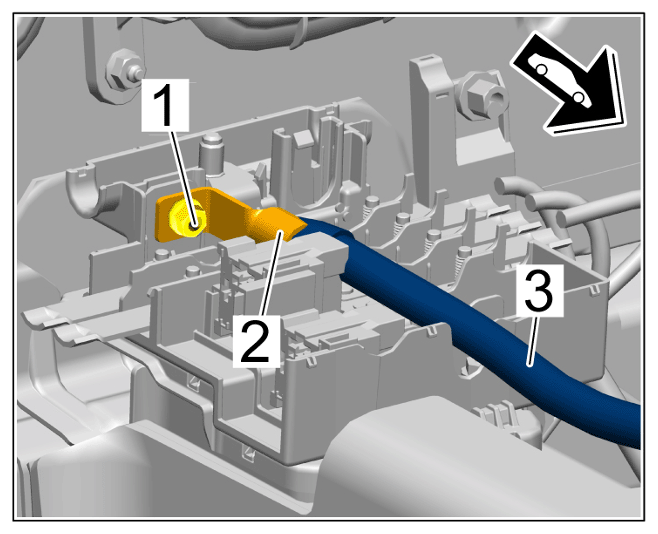

3.2 Unscrew fastening nut -1- and remove cable shoe -2- from the fastening bolt.

G15535672

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

B+ line from power distributor to transmission connection point

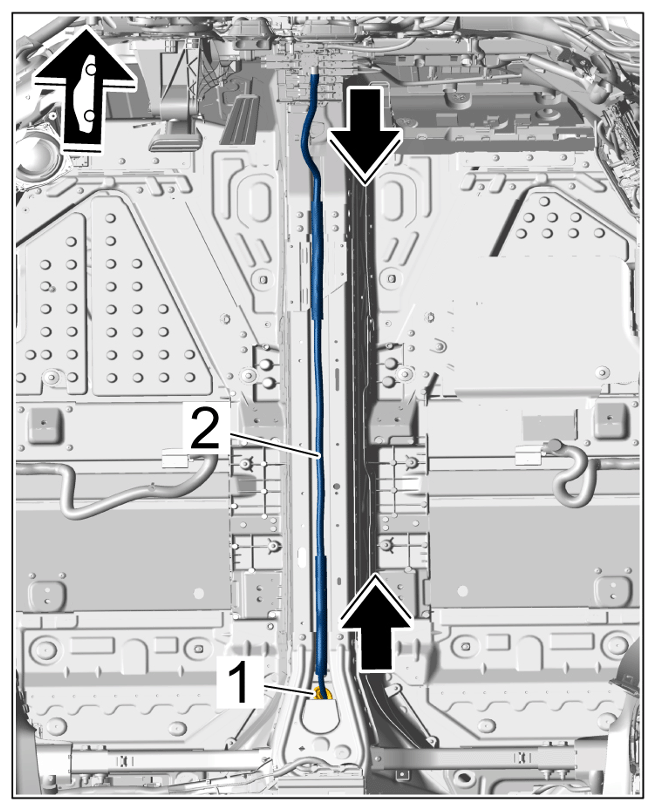

Remove B+ line from power distributor to transmission connection point -2- .
1. 4.1 Remove rubber sleeve -1- .
2. 4.2 Pull B+ line from power distributor to transmission connection point -2- towards the passenger compartment -Arrows- .
3. 4.3 Remove B+ line from power distributor to transmission connection point -2- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

B+ line from power distributor to transmission connection point
