Removing B+ Line For Battery

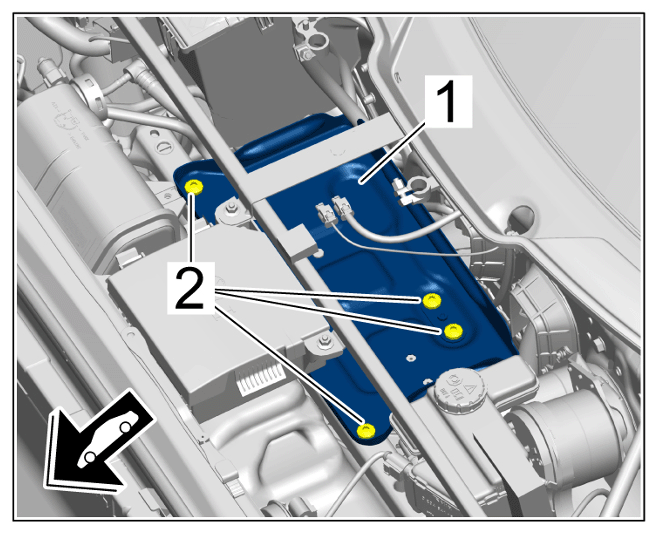

1. 1.1 Unscrew fastening screws -2-  and remove battery console -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Battery console

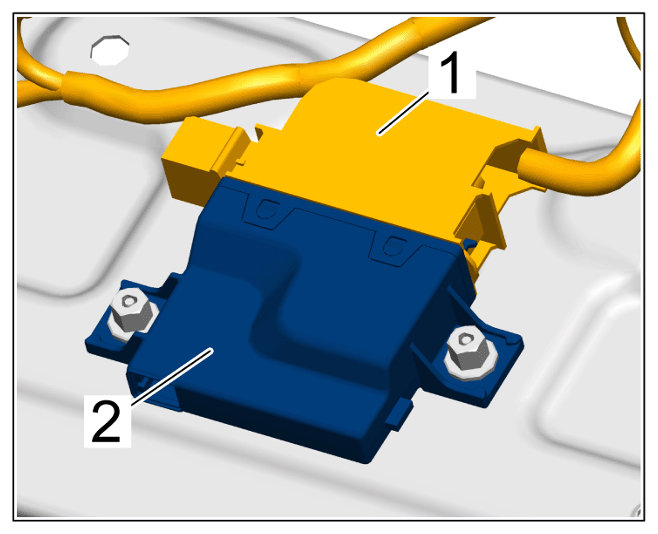

2. 1.2 Release and disconnect electric plug connection from fuel pump control unit -1-  at the underside of the battery console -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fuel pump control unit

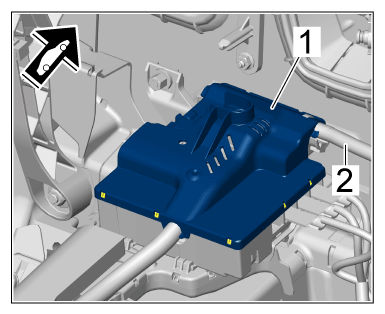

1. 2.1 Unclip and remove main fuse box cover -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Main fuse box cover

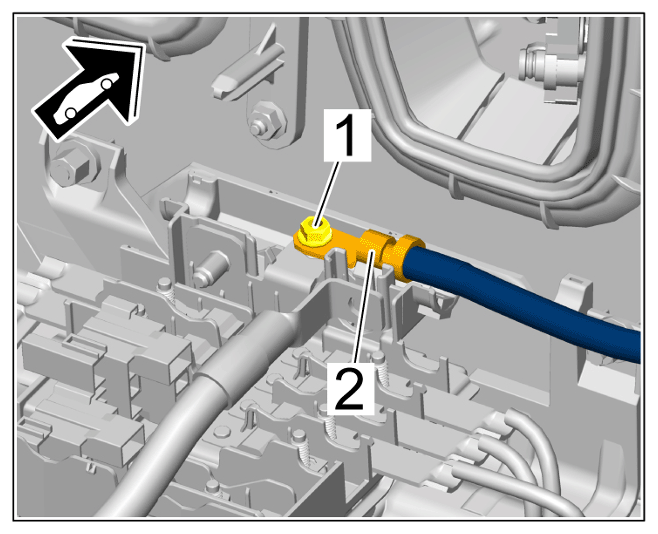

2. 2.2 Unscrew fastening nut -1-  and remove cable shoe of B+ line for battery -2-  from the connecting bolt in the power distributor.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   B+ line for battery

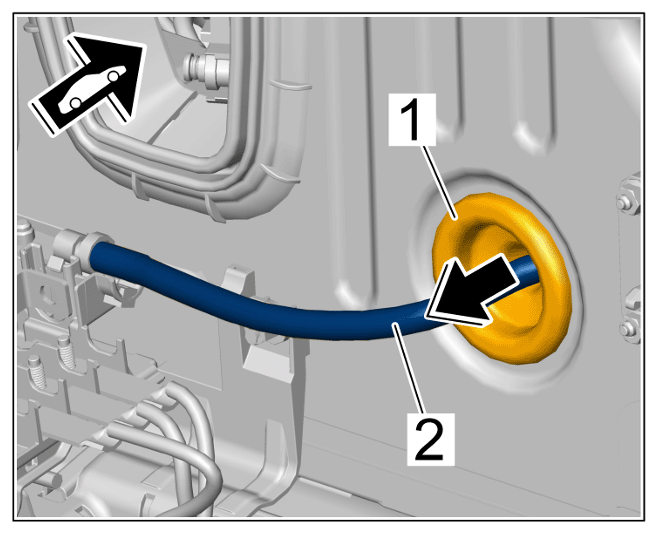

3. 2.3 Detach rubber sleeve -1-  for B+ line for battery -2-  from the body aperture and remove B+ line for battery -2-  by pulling it towards the passenger compartment. -arrow-

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

B+ line for battery
