Installation Position

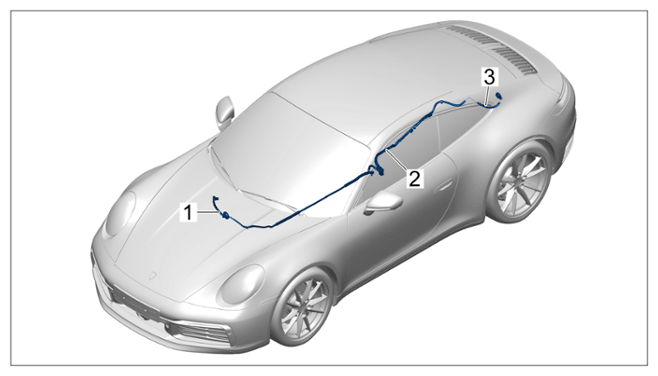

Fig 1: Wire Harness For Starter Battery Components Location
G15535664Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position

1  B+ line for battery
2  B+ line from power distributor to transmission connection point
3  B+ line from transmission connection point to generator
