Removing Wire Harness For Front Apron

Information

The front apron wire harness is made up of two separate parts (left and right).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

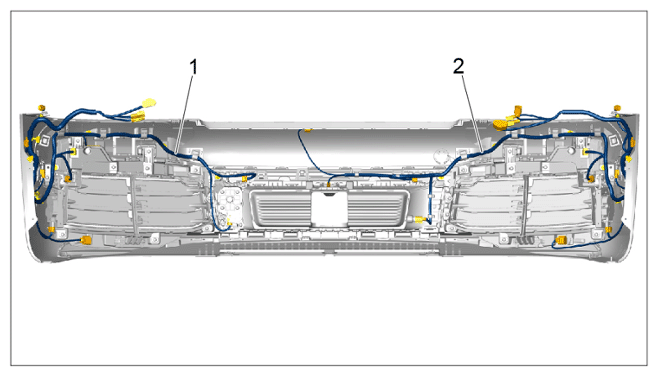

Wire harness in front apron

Information

The removal and installation steps are described for the left front apron wire harness.

The procedure for removing and installing the right wire harness is identical.

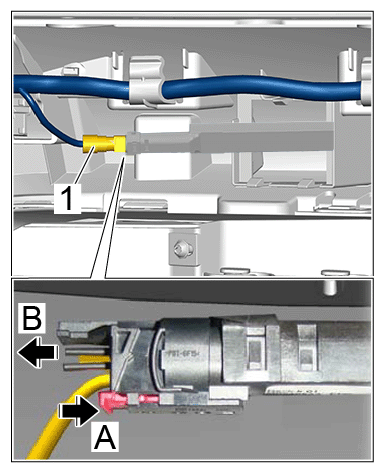

1. Release electric plug connection -1-  at the side direction indicator light -arrow A-  and disconnect it -arrow B-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

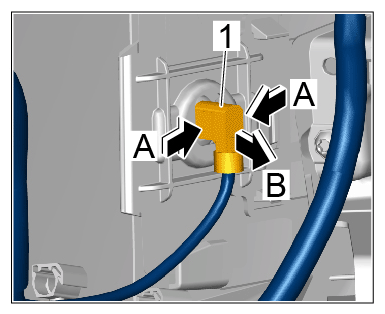

2. Release electric plug connection for GSM antenna -1-  (-arrows A-  ) and disconnect it -arrow B-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

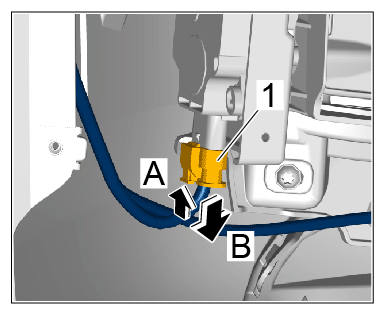

3. Release electric plug connection for ParkAssist sensors -1-  (-arrow A-  ) and disconnect it -arrow B-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

4. Only for vehicles with KESSY:

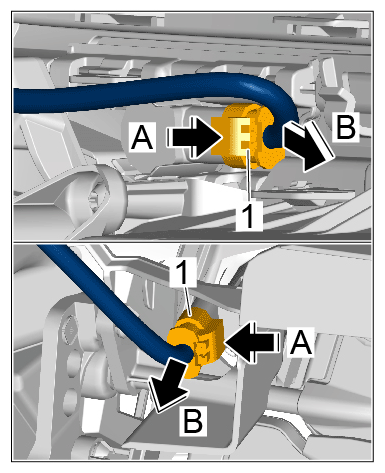

   Release electric plug connection -1-  for proximity sensor by pressing in the lock -arrow A-  and disconnect it -arrow B-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

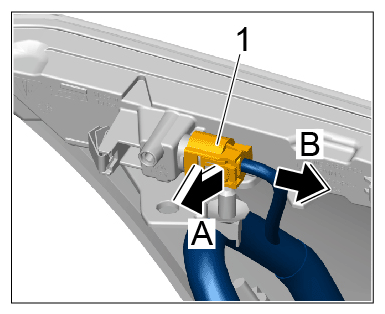

5. Release electric plug connection for cooling-air flap motor -1-  (-arrow A-  ) and disconnect it -arrow B-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

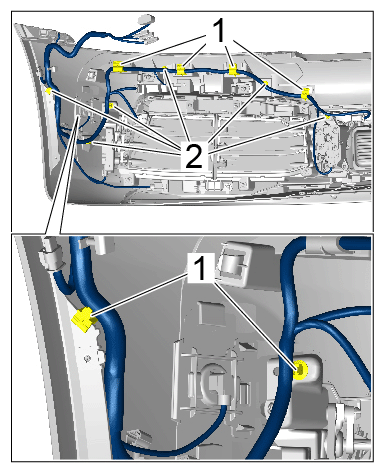

6. Loosen fastening clamps -1-  and unclip wire harness for front apron from retaining clips -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening clamps
