Removing Sub-Part For Rear Right Wheel Housing

1. Loosen fixing clip -2-  and release and disconnect electric plug connection for engine/pump unit -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

2. Disconnect line.

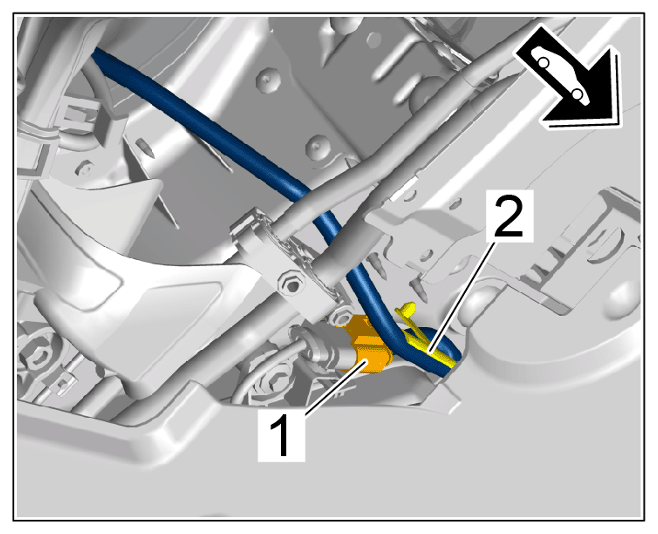

   1. 2.1 Release and disconnect electric plug connections for servo motor for rear axle steering -1-  .
   2. 2.2 Loosen the fixing clip -2-  .
   3. 2.3 Detach rubber sleeve -3-  from the body and press it into the interior of the vehicle -arrow-  .

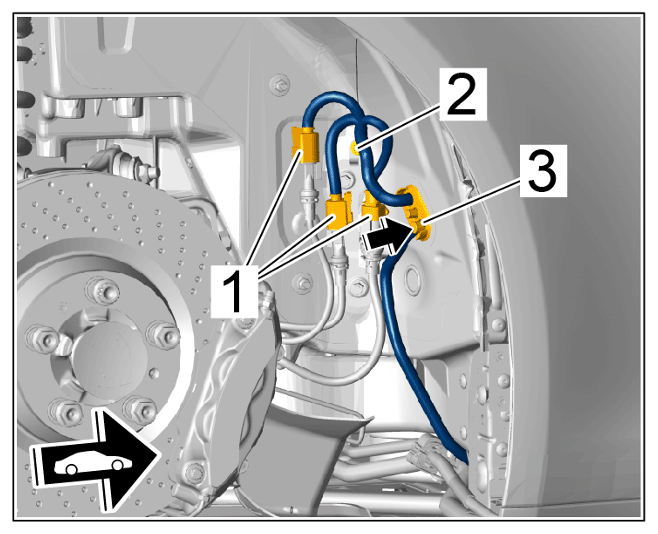

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rubber sleeve

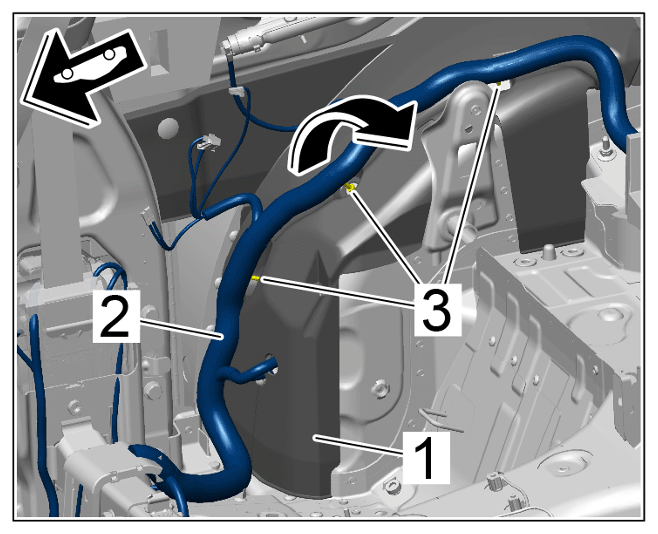

3. Disconnect line.
   1. 3.1 Unclip tie-wrap -3-  from the body.
   2. 3.2 Move sub-part for rear right wheel housing -2-  aside -arrow-  .
   3. 3.3 Remove sound absorber -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Tie-wrap

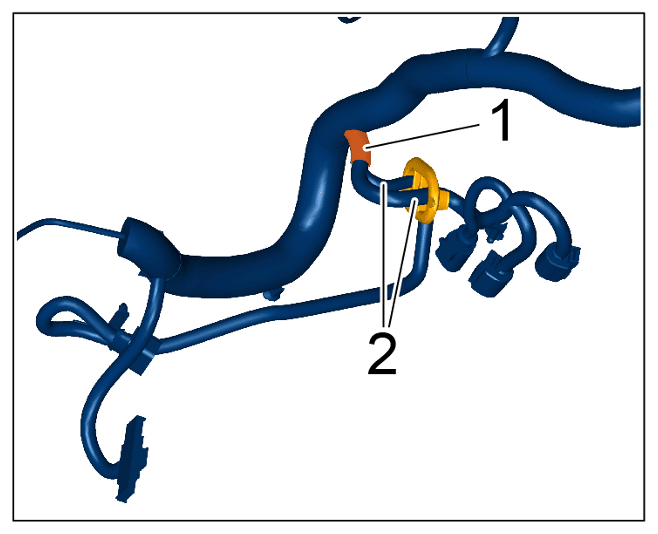

4. Unwrap insulation -1-  on sub-part for rear right wheel housing -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Insulation

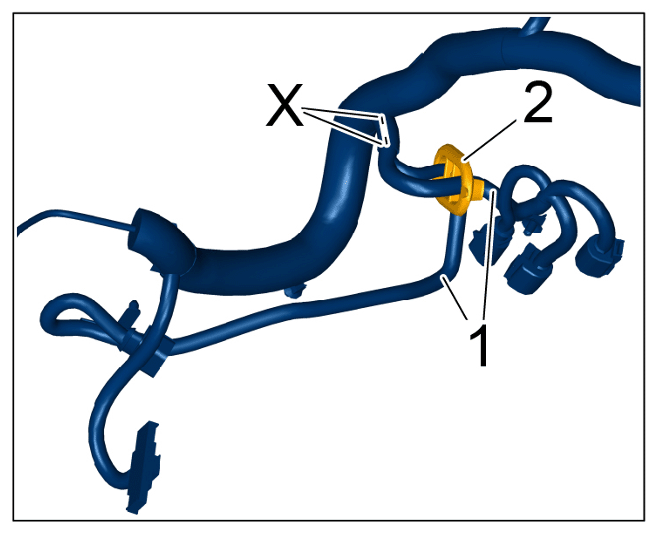

5. Cut off sub-part for rear right wheel housing -1-  in area -X-  and remove sub-part for rear right wheel housing -1-  with rubber sleeve -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Sub-part for rear right wheel housing
