Removing Sub-Part For Rear Left Wheel Housing

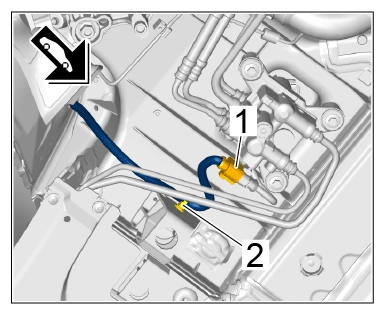

1. Disconnect electric plug connection at the valve block -1-  .
   1. 1.1 Release and disconnect electric plug connection for the valve block -1-  .
   2. 1.2 Loosen the fixing clip -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

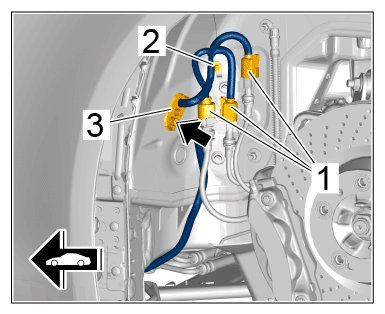

2. Disconnect sub-part for rear left wheel housing.
   1. 2.1 Release and disconnect electric plug connections for servo motor for rear axle steering -1-  .
   2. 2.2 Loosen fixing clips -2-  .
   3. 2.3 Detach rubber sleeve -3-  from the body and press it into the interior of the vehicle -arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Sub-part for rear left wheel housing

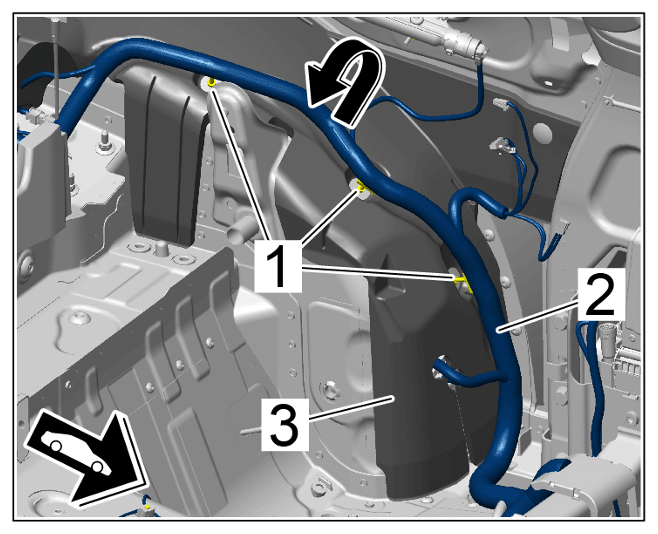

3. Disconnect wire harness.
   1. 3.1 Unclip tie-wrap -1-  from the body.
   2. 3.2 Set wire harness -2-  aside (arrow).
   3. 3.3 Remove sound absorber -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Sound absorber

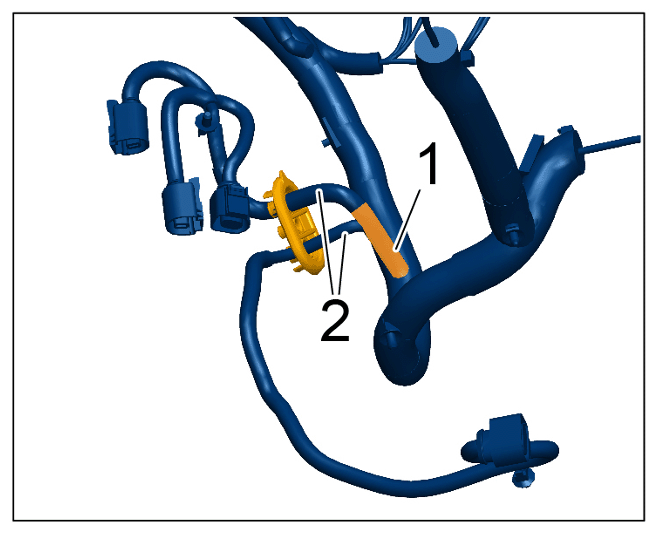

4. Unwrap insulation -1-  on sub-part for rear left wheel housing -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Insulation

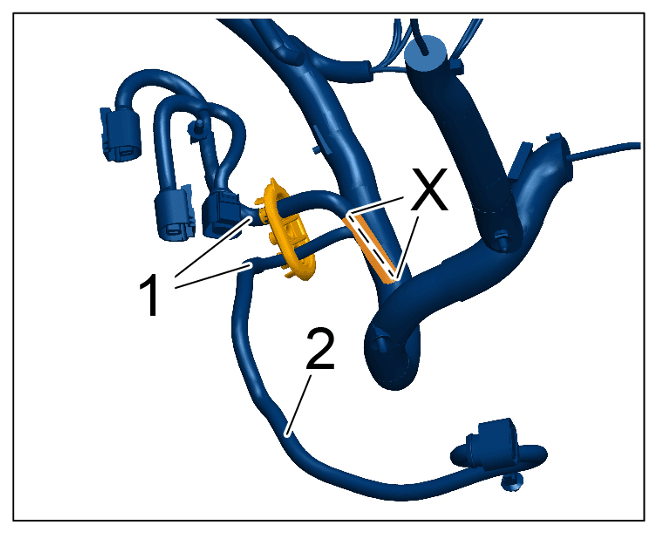

5. Cut off sub-part for rear left wheel housing -2-  in area -X-  and remove sub-part for rear left wheel housing -2-  with rubber sleeve -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rubber sleeve
