Home >> Porsche >> 2021 >> 911 Targa 4 >> Repair and Diagnosis >> Quick Lookups >> Wiring Diagrams >> 97 Lines -- 992 - 911 CARRERA (992) >> WM, 970919 Removing And Installing Main Wire Harness >> Technical Values

Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Fastening nut securing feed-through element to firewall Item 1/Replacing nuts Tightening torque 4.3 Nm (3.1 ftlb.)

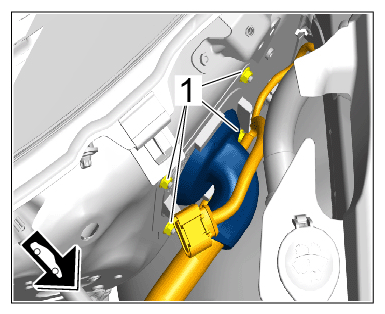

G15535555Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening nuts
