Installation Position For Coupe

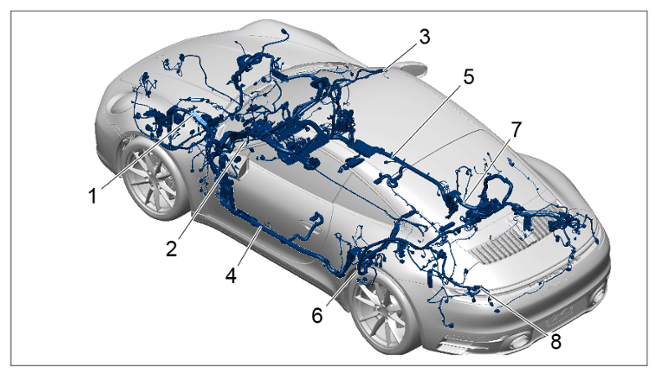

Installation position
| 1 | Main wire harness in front end |
| 2 | Main wire harness in left roof pillar area |
| 3 | Main wire harness in right roof pillar area |
| 4 | Main wire harness in passenger compartment at the left |
| 5 | Main wire harness in passenger compartment at the right |
| 6 | Sub-part for rear left wheel housing |
| 7 | Sub-part for rear right wheel housing |
| 8 | Main wire harness in engine compartment |
