Securing Main Wire Harness In Passenger Compartment At The Right

Information

Check that the lines are routed correctly!

1. Secure in reverse order. Pay particular attention to the following:

Secure the main wire harness and lines coming from it at the specified fastening points.

Tighten fastening nut -3-  securing ground line to the body to > Tightening torque 8 Nm (6 ftlb.)  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

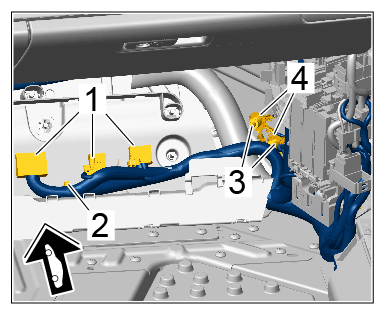

Fastening points

Tighten fastening nuts -3-  securing ground lines to the body to > Tightening torque 8 Nm (6 ftlb.)  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

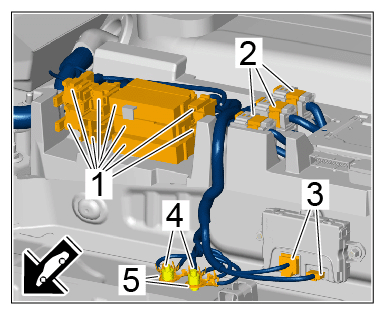

Ground line

Tighten fastening nuts -4-  securing ground lines to the body to > Tightening torque 8 Nm (6 ftlb.)  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

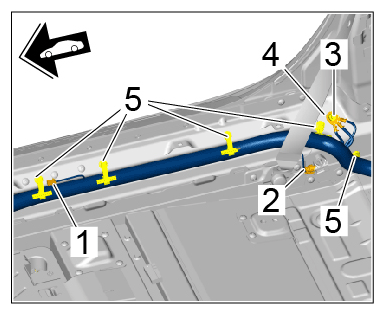

Ground line

Tighten fastening nuts securing relay carrier to the body to > Tightening torque 8 Nm (6 ftlb.)  .

Plug in electric plug connections until they engage securely.
