Securing Main Wire Harness In Luggage Compartment At The Left

1. Secure in reverse order. Pay particular attention to the following:

   Tighten fastening nut securing ground line to the body to > Tightening torque 10 Nm (7.5 ftlb.)  .

   Electric plug connections must engage securely.

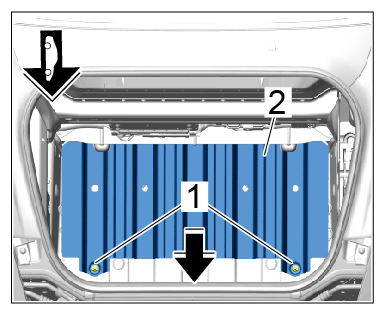

2. Insert the crash element in the front of -2-  the boot floor -arrow-  and tighten the fastening nuts -1-  to > Tightening torque 9.7 Nm (7.3 ftlb.)  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Crash element
