Loosening Main Wire Harness In Luggage Compartment At The Right

Information

Always comply with the regulations for handling ESD-sensitive components!

• Always wear approved work clothes and shoes when carrying out assembly work.
• Do not remove new parts from ESD (electrostatic discharge) protective packaging until shortly before installation.
• Do not touch electric pins and plug contacts.

1. Main wire harness in the outside right of the boot:

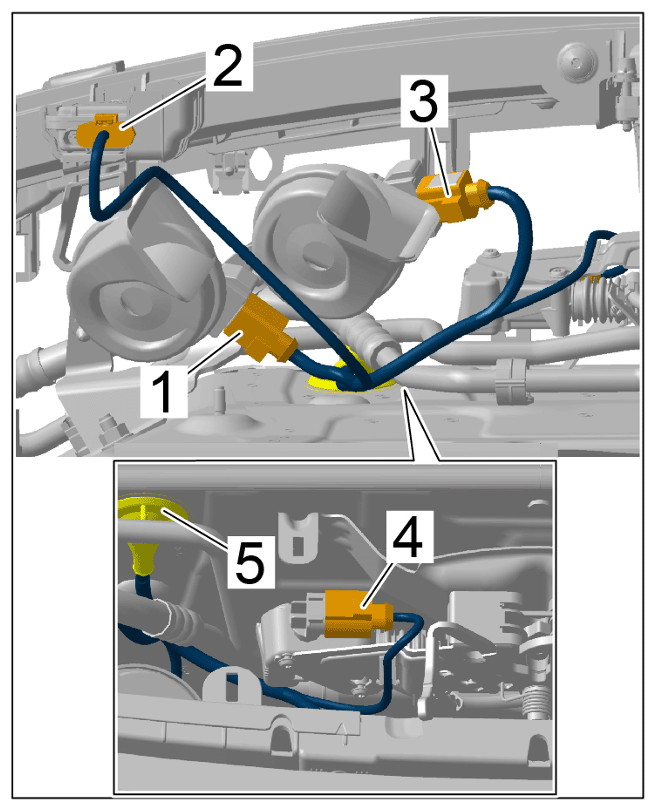

   1. 1.1 Release and disconnect electric plug connection -1-  on the garage door opener control unit.
   2. 1.2 Release the high-pitched fanfare plug connection -2-  and pull it out.
   3. 1.3 Release the low-pitched fanfare plug connection -3-  and pull it out.
   4. 1.4 Release and disconnect electric plug connection on the actuator -4-  .
   5. 1.5 Pull rubber sleeve -5-  inwards.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connections

2. Main wire harness in inside right of boot:
   1. 2.1 Release and disconnect electric plug connections.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Electric plug connections

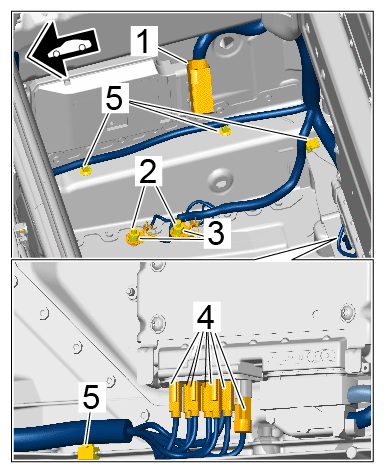

      1. 2.1.1 Release and disconnect electric plug connection for PDCC -1-  .
      2. 2.1.2 Unscrew fastening nuts -2-  and remove ground lines -3-  .
      3. 2.1.3 Release and disconnect electric plug connections for camera control unit -4-  .
      4. 2.1.4 Loosen fixing clips -5-  .

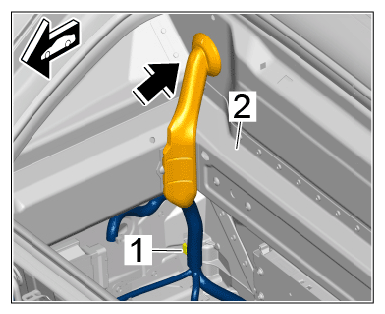

   2. 2.2 Undo fixing clips -1-  and -2-  pull the foam sleeve on the line inwards to the plenum panel -arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fixing clips
